Description
JORC Level sensed drains

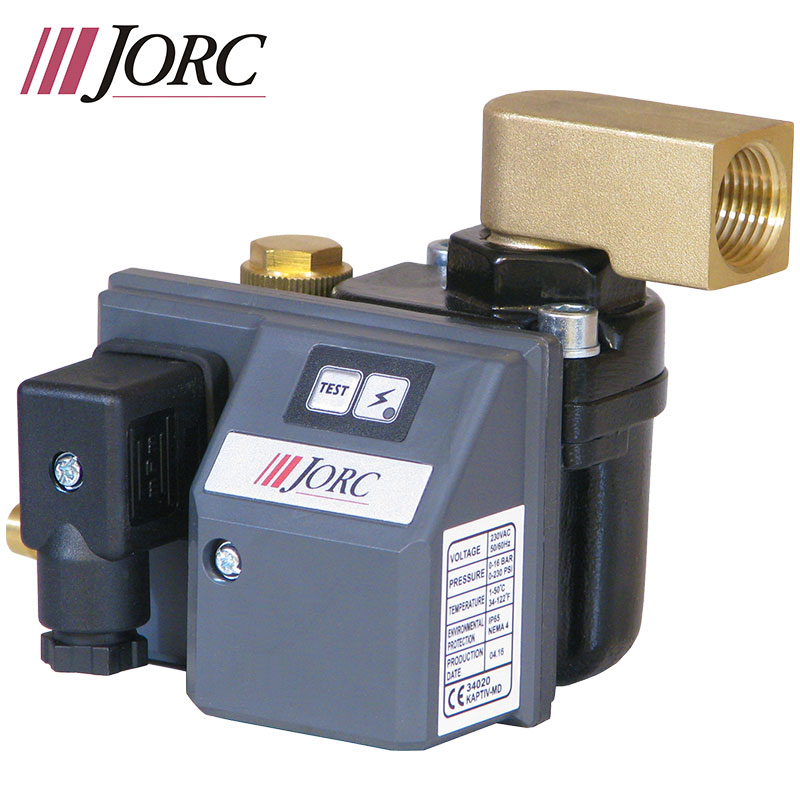

KAPTIV-MD Series Electronically operated level sensed drain
SPECIFICATIONS
Maximum compressor capacity : 10 m³/min.
Pressure range : 0 – 16 bar
Valve type : 2/2 way, direct acting
Valve seals : FPM
Orifice : 2.0mm
Inlet connection : 1/2″ (BSP or NPT)
Outlet connection : 1/4″ (BSP or NPT)
Temperature : 1ºC – 50ºC
Supply voltage options : 230VAC / 115VAC / 24VAC / 24VDC
