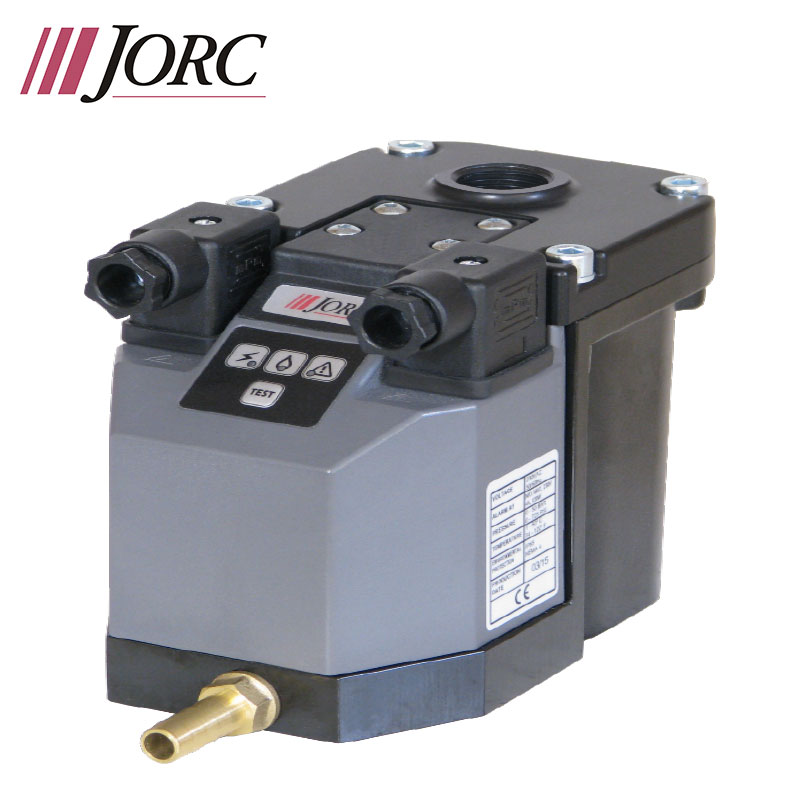

“JORC” KAPTIV-CS-HP Series
High pressure electronic level sensed condensate drain
SPECIFICATIONS
High pressure electronic level sensed condensate drain
SPECIFICATIONS
Maximum compressor capacity : 100 m³/min.
Pressure range : 0 – 50 bar
Valve type : 2/2 way, direct acting
Valve orifice : 1.8 mm
Valve seals : FPM
Inlet connection : 1/2″ (BSP or NPT), 3 inlet options
Outlet connection : 1/4″ BSP
Temperature : 1ºc – 50ºc
Supply voltage options : 230vac / 115vac / 24vac / 24vdc
| TYPE | PART NUMBER | SIZE | Supply voltage |
DOWNLOAD
|
|
KAPTIV-CS-HP A1
|
3403 H1 |
1/2″
|
220-230VAC | |
| 3423 H1 | 110-115VAC | |||
| 3463 H1 | 24VAC | |||
| 3483 H1 | 24VDC | |||
|
KAPTIV-CS-HP A2
|
3403 H2 |
1/2″
|
220-230VAC | |
| 3423 H2 | 110-115VAC | |||
| 3463 H2 | 24VAC | |||
| 3483 H2 | 24VDC |
