Description

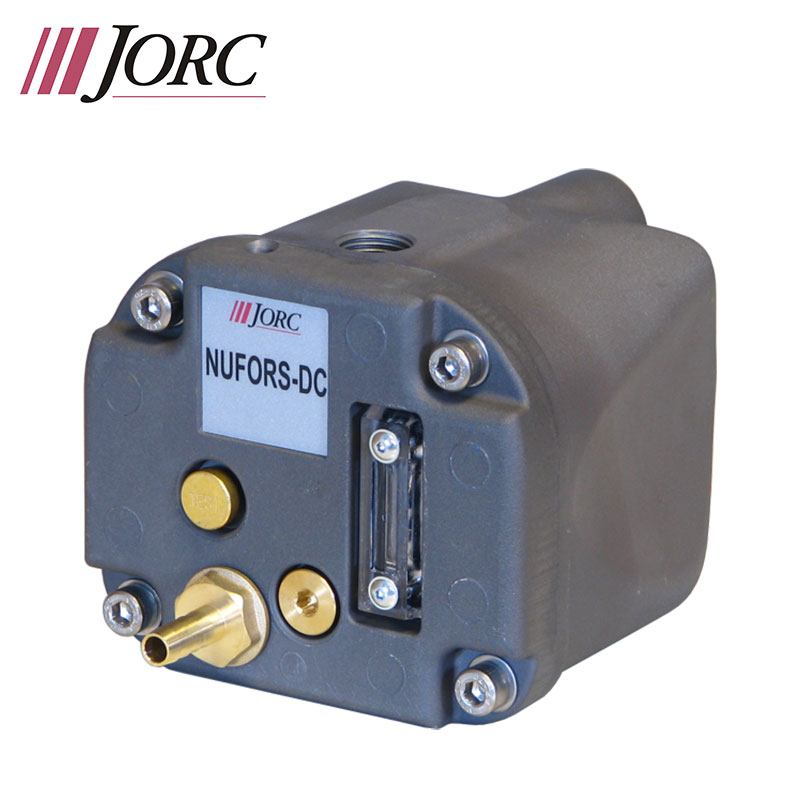

JORC NUFORS-DC Level sensed condensate drain
SPECIFICATIONS
Maximum compressor capacity : 100 m³/min.
Min / Max system pressure : 3 – 16bar
Valve type : Direct acting
Valve orifice : 4.5 mm
Valve seals : FPM
Inlet connection : 1/2″ (BSP or NPT), 3 inlet options
Outlet connection : 1/2″ BSP
Temperature : 1ºc – 50ºc
| TYPE | PART NUMBER | SIZE | DOWNLOAD |
| NUFORS-DC | 3803 | 1/2″ | Download |
| NUFORS-DC-XL | 3803 XL |
