Description

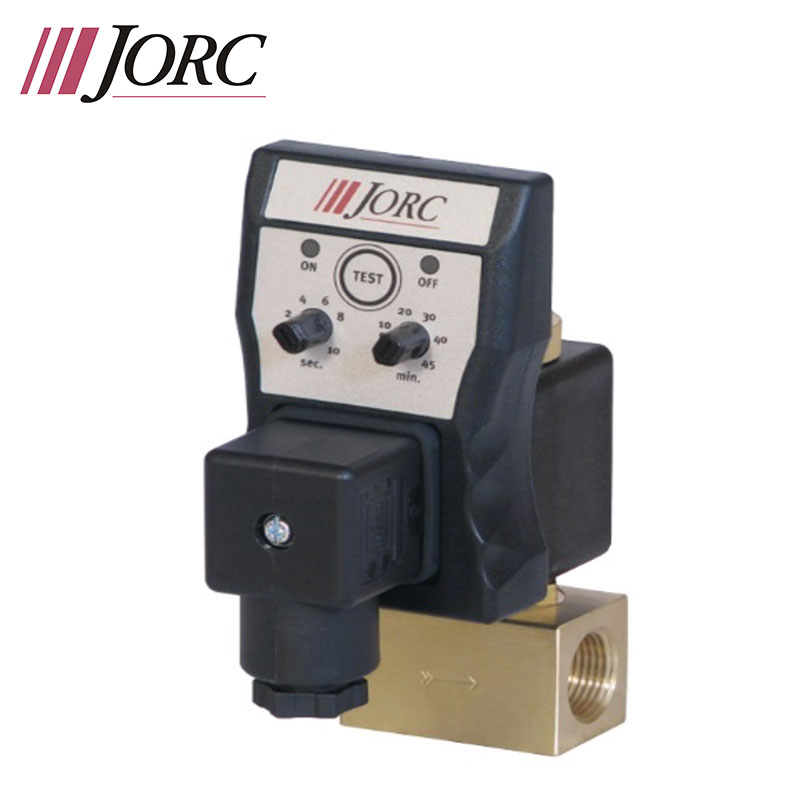

FLUIDRAIN Series Electronically timer controlled condensate drain “JORC”
ออโต้เดรนส์ไฟฟ้า
Specifications
Timer cycle range (On/Off) : 0.5 – 10 seconds / 0.5 – 45 minutes
Valve type : 2/2 way, direct acting
Valve housing material : Brass
Valve seal : FPM
Pressure range : 0-16Bar
Temperature : 2°C – 50°C
| TYPE | PART NUMBER | SIZE | SUPPLY VOLTAGE |
DOWNLOAD
|
| FLUID-1/8 | 1/8″ | |||
|
FLUID-1/4
|
1601 |
1/4″
|
220-230VAC | |
| 1621 | 110-115VAC | |||
| 1661 | 24VAC | |||
| 1681 | 24VDC | |||
| 1651 LV | 12VDC | |||
| 1651 HV | 380VAC | |||
|
FLUID-3/8
|
1602 |
3/8″
|
220-230VAC | |
| 1622 | 110-115VAC | |||
| 1662 | 24VAC | |||
| 1682 | 24VDC | |||
| 1652 LV | 12VDC | |||
| 1652 HV | 380VAC | |||
|
FLUID-1/2
|
1603 |
1/2″
|
220-230VAC | |
| 1623 | 110-115VAC | |||
| 1663 | 24VAC | |||
| 1683 | 24VDC | |||
| 1653 LV | 12VDC | |||
| 1653 HV | 380VAC |
