Description

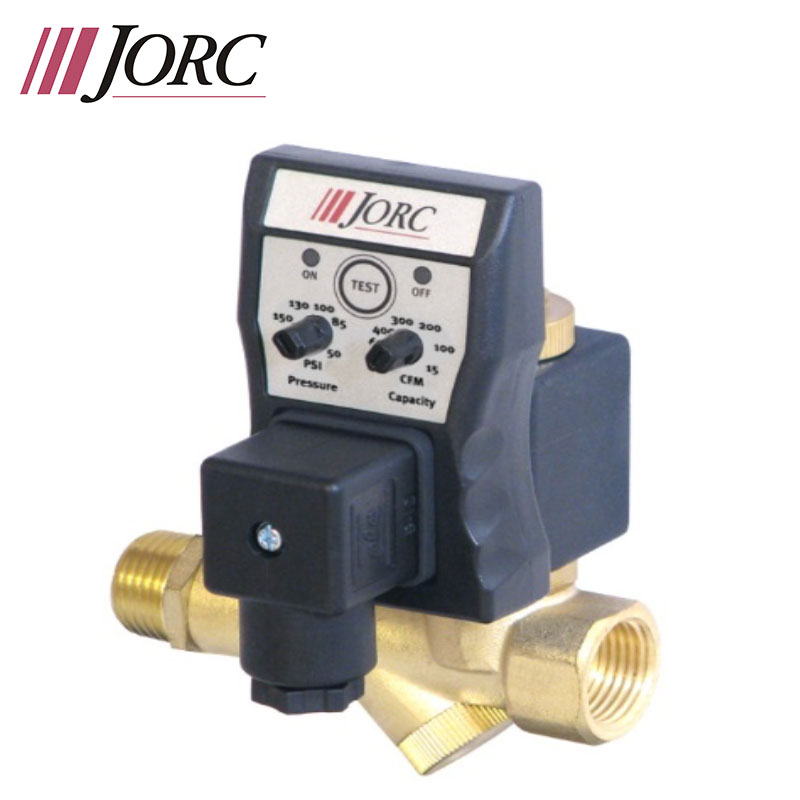

FLUIDRAIN-COMBO Series Electronically timer controlled condensate drain “JORC”
ออโต้เดรนส์ไฟฟ้า พร้อมวายสแตนเนอร์
Specifications
Timer cycle range (On/Off) : 0.5 – 10 seconds / 0.5 – 45 minutes
Pressure range : 0 – 16Bar
Supply vlotage options : 12 – 380 VAC/DC 50/60Hz
Medium Temperature : 1ºC – 55ºC
Valve type : 2/2 way, direct acting
Valve housing material : Brass
Vave seal : FPM
Inlet/Outlet connections : 1/4” & 1/2” / 1/2” (BSP or Npt)
| TYPE | PART NUMBER | SIZE | Supply voltage | Download |
|
FLUIDRAIN-COMBO
|
2506 |
1/2″
|
220-230VAC | |
| 2526 | 110-115VAC | |||
| 2566 | 24VAC | |||
| 2586 | 24VDC | |||
| 2556 LV | 12VDC | |||
| 2556 HV | 380VAC |
