Description

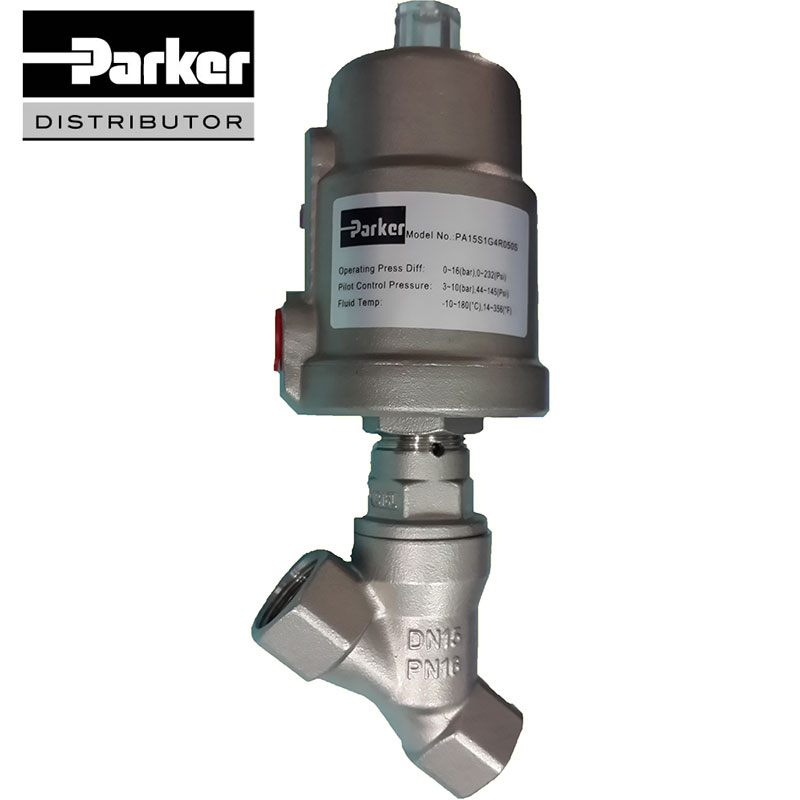

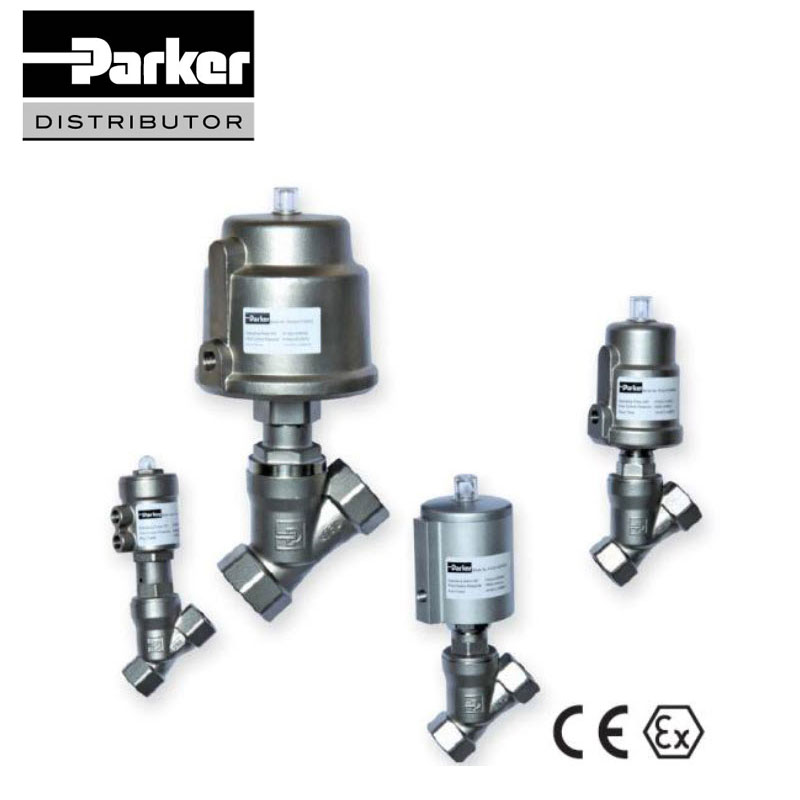

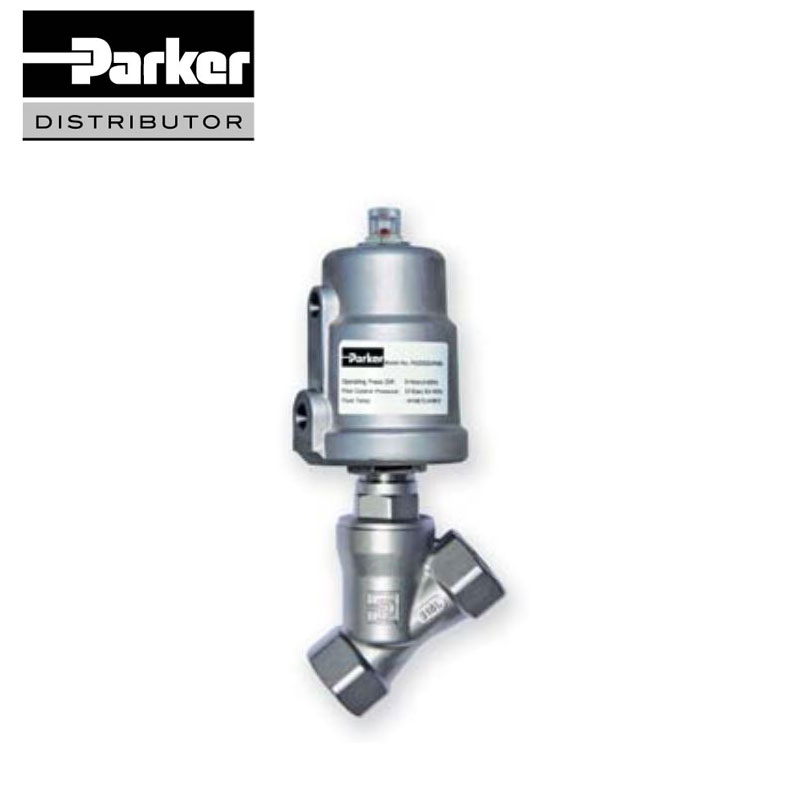

“PARKER” ANGLE VALVE STAINLESS
NORMALLY OPEN VALVES FLOW DIRECTION OVER SEAT
PA SERIES 304 STAINLESS STEEL ACTUATORS WITH 304
STAINLESS STEEL BODIES
ดาวโหลดสเปค PA NO
NORMALLY OPEN VALVES FLOW DIRECTION OVER SEAT
PA SERIES 304 STAINLESS STEEL ACTUATORS WITH 304
STAINLESS STEEL BODIES
ดาวโหลดสเปค PA NO
| TYPE | PORT SIZE | ACTOATOR SIZE | OPERTING PRESSURE DIFFERENTIAL |
OPERTING PRESSURE RANGE |
| PA10S2G3S050S | 3/8″ | 50MM | 0-16Bar (0-232psi) | 3.5-10Bar (51-145psi) |
| PA15S2G4S050S | 1/2″ | 50MM | 0-16Bar (0-232psi) | 3.5-10Bar (51-145psi) |
| PA20S2G5S050S | 3/4″ | 50MM | 0-16Bar (0-232psi) | 3.5-10Bar (51-145psi) |
| PA25S2G6S063S | 1″ | 63MM | 0-16Bar (0-232psi) | 4.5-10Bar (66-145psi) |
| PA32S2G7S063S | 1-1/4″ | 63MM | 0-14Bar (0-203psi) | 4.5-10Bar (66-145psi) |
| PA40S2G8S063S | 1-1/2″ | 63MM | 0-11Bar (0-160psi) | 4.5-10Bar (66-145psi) |
| PA50S2G9S063S | 2″ | 63MM | 0-6Bar (0-87psi) | 5-10Bar (73-145psi) |
| PA50S2G9S080S | 80MM | 0-12Bar (0-174psi) | 5-10Bar (73-145psi) |
