“ESG”
ANGLE VALVE STAINLESS
DOUBLE ACTING,
NORMALLY CLOSED
ENTER BELOW SEAT
JF (100) SERIES

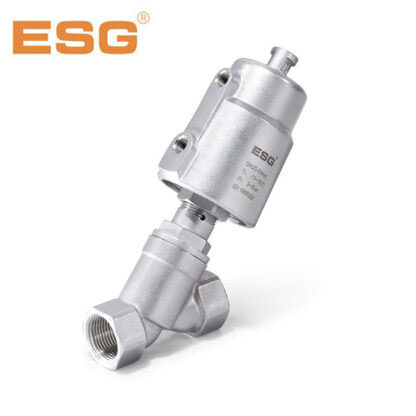

“ESG” PNEUMATIC ANGLE VALVE STAINLESS
DOUBLE ACTING , NORMALLY CLOSED (NC) – ENTER BELOW SEAT (NO WATER-HAMMER)
JF (100) SERIES
ดาวโหลดสเปค JF(NC) DOULBE ACTING BELOW SEAT

TYPE	THREAD END	ACTUATOR (MM)	MAX.PRESSURE (MPA)/(PSI)	CONTROL PRESSURE (MPA)
JF40210WG-DN10BSP	3/8″	40MM	0-1.6 MPA	>0.3 MPA
JF50210WG-DN10BSP		50MM		>0.3 MPA
JF40215WG-DN15BSP	1/2″	40MM	0-1.6 MPA	>0.3 MPA
JF50215WG-DN15BSP		50MM		>0.3 MPA
JF50220WG-DN20BSP	3/4″	50MM	0-1.6 MPA	>0.3 MPA
JF50225WG-DN25BSP	1″	50MM	0-1.3 MPA	0.3-0.6 MPA
JF632125WG-DN25BSP		63MM	0-1.6 MPA	0.3-0.4 MPA
JF90225WG-DN25BSP		90MM		0.2-0.3 MPA
JF63232WG-DN32BSP	1-1/4″	63MM	0-1.6 MPA	0.3-0.6 MPA
JF90232WG-DN32BSP		90MM		0.2-0.4 MPA
JF63240WG-DN40BSP	1-1/2″	63MM	0-1.6 MPA	0.3-0.7 MPA
JF90240WG-DN40BSP		90MM		0.2-0.5 MPA
JF63250WG-DN50BSP	2″	63MM	0-0.8 MPA	0.3-0.75 MPA
JF90250WG-DN50BSP		90MM	0-1.6 MPA	0.2-0.6 MPA
JF125250WG-DN50BSP		125MM		0.2-0.4 MPA
JF90265WG-DN65BSP	2-1/2″	90MM	0-1.1 MPA	0.2-0.7 MPA
JF125265WG-DN65BSP		125MM	0-1.6 MPA	0.2-0.55 MPA
JF125280WG-DN80BSP	3″	125MM	0-1.6 MPA	0.2-0.65 MPA
JF1252100WG-DN100BSP	4″	125MM	0-1.2 MPA	0.4-0.5 MPA
