Description
“PARKER” 2/2 Brass Solenoid valve , Diaphragm pilot operated
Normally closed (N.C.) , Seal : EPDM-PTFE-RUBY
For Steam – superheated water
133H (7321H) , 135 , 140.2 , 156.2 Series
|
Model
|
Port size
|
Part
Number |
Working
Temp ( ͦC) |
Working Pressure (Bar) |
COIL
|
Model Coil |
Download
|
|
| A.C. | D.C. | |||||||

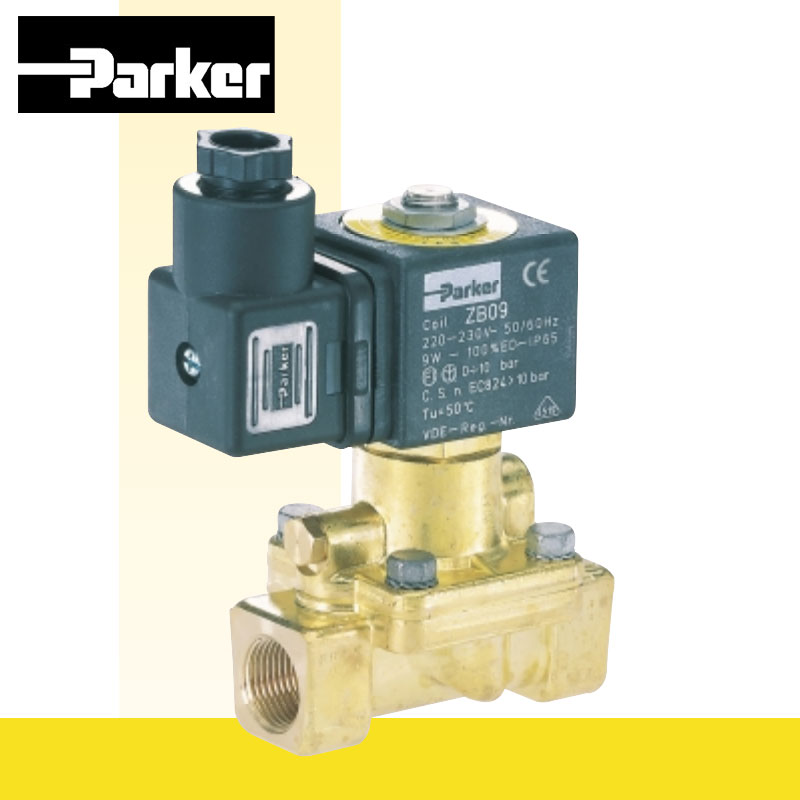

| P-VE7321BIH | 3/8″ | 443778W |
-10 – 140 C
|
0.1 – 20 | 0.1 – 20 |
AC110
AC220 AC24 DC12 DC24 |
ZB09
ZB12 ZH14 ZH16 YB09 YB12 |
|
| P-VE7321BAH | 1/2″ | 443781W | 0.1 – 20 | 0.1 – 20 | ||||
| P-VE7321BCH | 3/4″ | 443785W | 0.1 – 20 | 0.1 – 20 | ||||
| P-VE7321BDH | 1″ | 443789W | 0.1 – 20 | 0.1 – 20 | ||||
| P-VE7321BEH | 1.1/4″ | 443793W | 0.1 – 10 | 0.1 – 10 | ||||
| P-VE7321BFH | 1.1/2″ | 443797W | 0.1 – 10 | 0.1 – 10 | ||||
| P-VE7321BGH | 2″ | 443801W | 0.1 – 10 | 0.1 – 10 | ||||

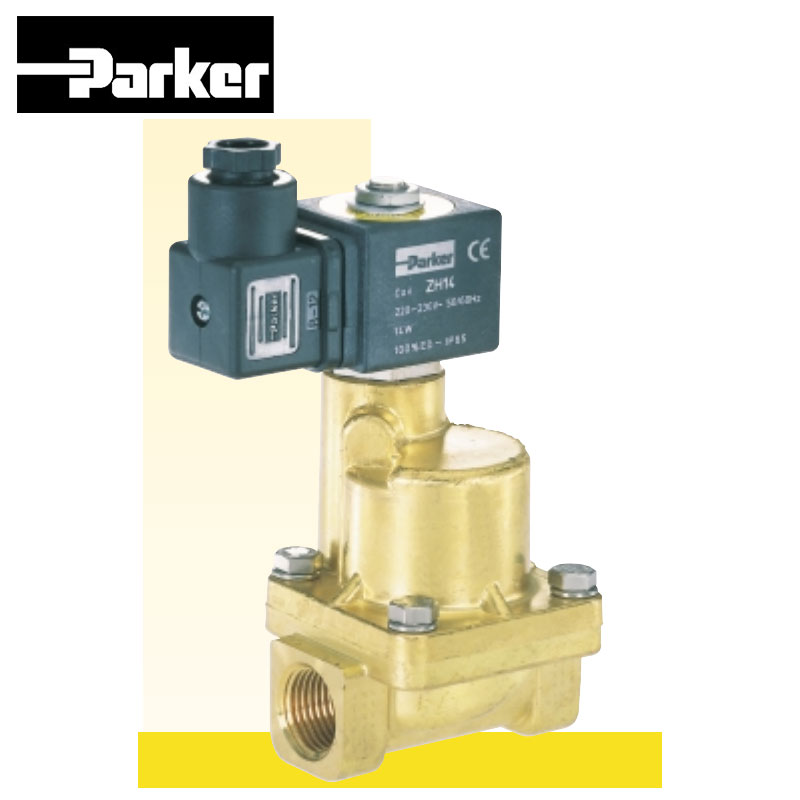

| P-VE135IT | 3/8″ | 362262 |
-30 – 180 C
|
0.5 – 10 | 0.5 – 10 |
ZH14
ZH16 |
||
| P-VE135AT | 1/2″ | 362263 | 0.5 – 10 | 0.5 – 10 | ||||
| P-VE135CT | 3/4″ | 362264 | 0.5 – 10 | 0.5 – 10 | ||||
| p-VE135DT | 1″ | 362265 | 0.5 – 10 | 0.5 – 10 | ||||

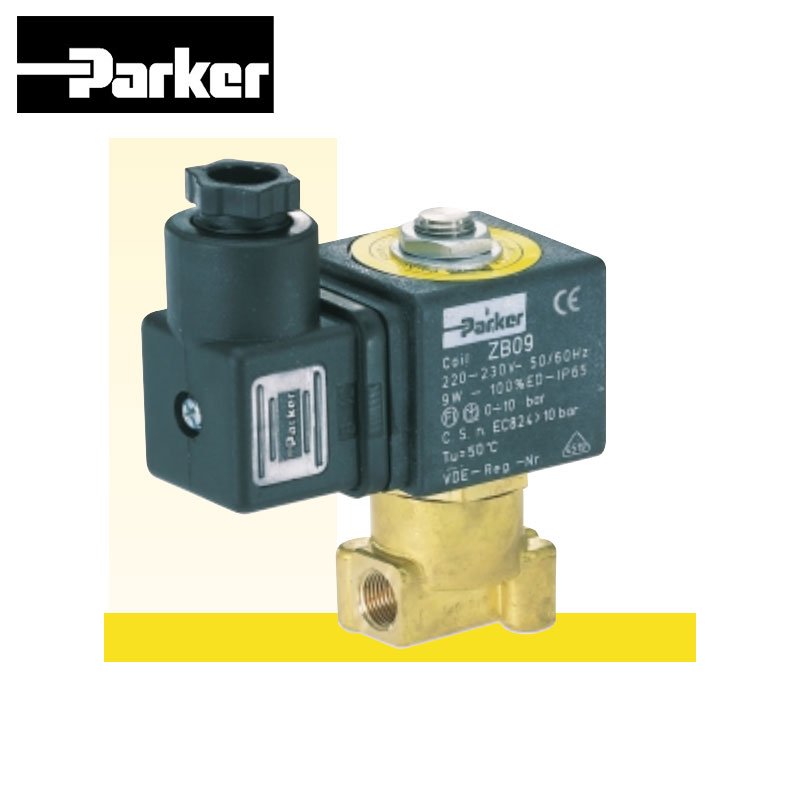

| P-VE140.2HH-UL | 1/8″ |
-30 – 140 C
|
0 – 20 |
ZB09
YB09 ZH14 |
||||
| P-VE140.2IR | 1/8″ | 362496J | 0 – 20 | |||||

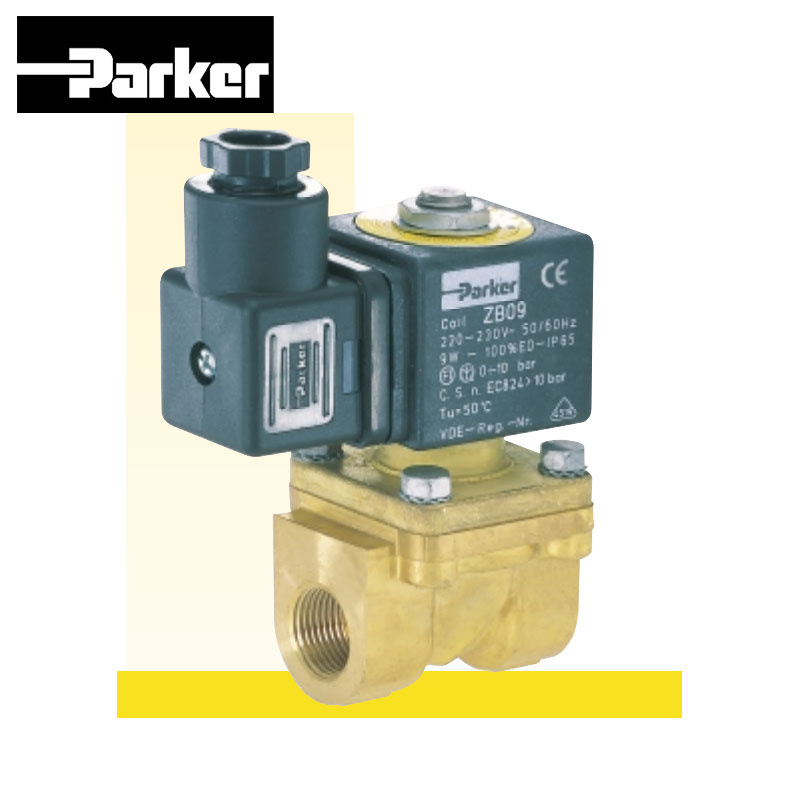

| P-VE156.2IR | 3/8″ | 364520 |
-30 – 160 C
|
0 – 30 | 0 – 17 |
ZB09
YB09 ZH14 |
||
| P-VE156.2AR | 1/2″ | 364525 | 0 – 30 | 0 – 12 | ||||
| P-VE156.2CR | 3/4″ | 364530 | 0 – 30 | |||||
| P-VE156.2DR | 1″ | 364535 | 0 – 30 | |||||
