Description
ONE-TOUCH FITTINGS “CDC”
MODEL : PAT(2)

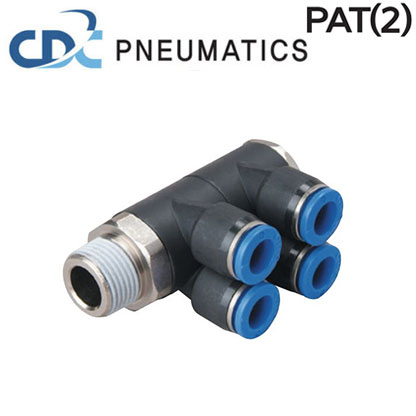

DOUBLE BRANCH A FITTING
MODEL : PAT(2)
DOUBLE BRANCH A FITTING
| thread | Tube size (mm)(3) | ||||||
| (PT) | Ø 4 | Ø 6 | Ø 8 | Ø 10 | Ø 12 | Ø 14 | Ø 16 |
| M5 | |||||||
| 1/8” | PAT04-01(2) | PAT06-01(2) | PAT08-01(2) | ||||
| 1/4” | PAT04-02(2) | PAT06-02(2) | PAT08-02(2) | PAT10-02(2) | PAT12-02(2) | ||
| 3/8” | PAT04-03(2) | PAT06-03(2) | PAT08-03(2) | PAT10-03(2) | PAT12-03(2) | ||
| 1/2” | PAT04-04(2) | PAT06-04(2) | PAT08-04(2) | PAT10-04(2) | PAT12-04(2) | ||
