Description
ONE-TOUCH FITTINGS “CDC”

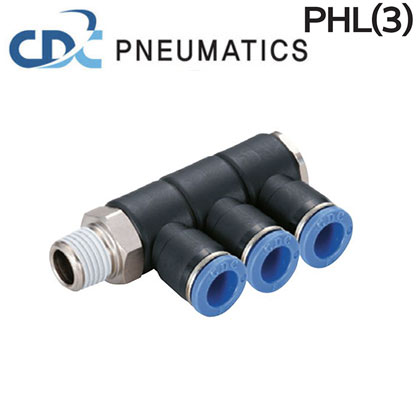

MODEL : PHL(3)
TRIPLE UNIVERSAL ELBOW FITTING
MODEL : PHL(3)
TRIPLE UNIVERSAL ELBOW FITTING
| thread | Tube size (mm) (2) | ||||||
| (PT) | Ø 4 | Ø 6 | Ø 8 | Ø 10 | Ø 12 | Ø 14 | Ø 16 |
| M5 | |||||||
| 1/8” | PHL04-01(3) | PHL06-01(3) | PHL08-01(3) | PHL10-01(3) | |||
| 1/4” | PHL04-02(3) | PHL06-02(3) | PHL08-02(3) | PHL10-02(3) | PHL12-02(3) | ||
| 3/8” | PHL04-03(3) | PHL06-03(3) | PHL08-03(3) | PHL10-03(3) | PHL12-03(3) | ||
| 1/2” | PHL04-04(3) | PHL06-04(3) | PHL08-04(3) | PHL10-04(3) | PHL12-04(3) | ||
