Description

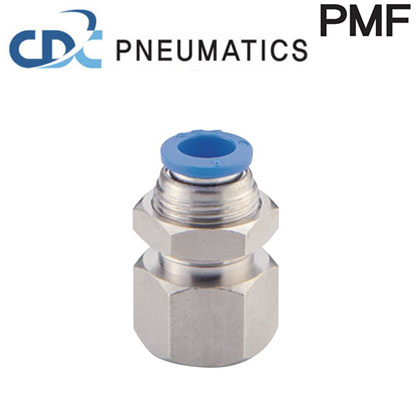

ONE-TOUCH FITTINGS “CDC”
MODEL : PMF
BULKHEAD FEMALE STRAIGHT FITTING
ข้อต่อยึดผนัง สวมสายลม-เกลียวใน
MODEL : PMF
BULKHEAD FEMALE STRAIGHT FITTING
ข้อต่อยึดผนัง สวมสายลม-เกลียวใน
| thread | Tube size (mm) | ||||||
| (PT) | Ø 4 | Ø 6 | Ø 8 | Ø 10 | Ø 12 | Ø 14 | Ø 16 |
| 1/8” | PMF04-01 | PMF06-01 | PMF08-01 | PMF10-01 | PMF12-01 | ||
| 1/4” | PMF04-02 | PMF06-02 | PMF08-02 | PMF10-02 | PMF12-02 | ||
| 3/8” | PMF04-03 | PMF06-03 | PMF08-03 | PMF10-03 | PMF12-03 | ||
| 1/2” | PMF08-04 | PMF10-04 | PMF12-04 | ||||
