Description

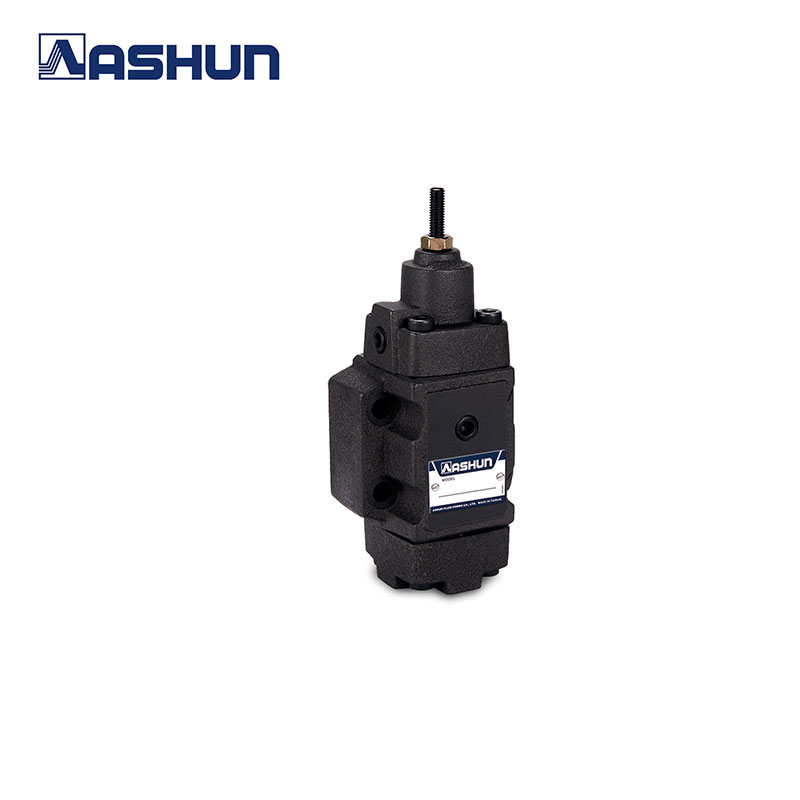

“ASHUN” PRESSURE CONTROL VALVES
SV SERIES : PRESSURE CONTROL VALVES
| MODEL | VALVE SIZE | TYPE OF CONNECTION |
PRESSURE ADJ.RANGE |
**VALVE TYPE | MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| SV-03G-A-** | 3/8″ | G : Sub-Plated Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
1 : Low Pressure Relief Valve 2 : Sequence Valve 3 : Sequence Valve 4 : Unloading Valve |
210 | 50 |
| SV-03G-B-** | ||||||
| SV-03G-C-** | ||||||
| SV-03T-A-** | T : Thread Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
||||
| SV-03T-B-** | ||||||
| SV-03T-C-** | ||||||
| SV-06G-A-** | 3/4″ | G : Sub-Plated Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
1 : Low Pressure Relief Valve 2 : Sequence Valve 3 : Sequence Valve 4 : Unloading Valve |
210 | 125 |
| SV-06G-B-** | ||||||
| SV-06G-C-** | ||||||
| SV-06T-A-** | T : Thread Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
||||
| SV-06T-B-** | ||||||
| SV-06T-C-** | ||||||
| SV-10G-A-** | 1-1/4″ | G : Sub-Plated Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
1 : Low Pressure Relief Valve 2 : Sequence Valve 3 : Sequence Valve 4 : Unloading Valve |
210 | 250 |
| SV-10G-B-** | ||||||
| SV-10G-C-** | ||||||
| SV-10T-A-** | T : Thread Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
||||
| SV-10T-B-** | ||||||
| SV-10T-C-** |
