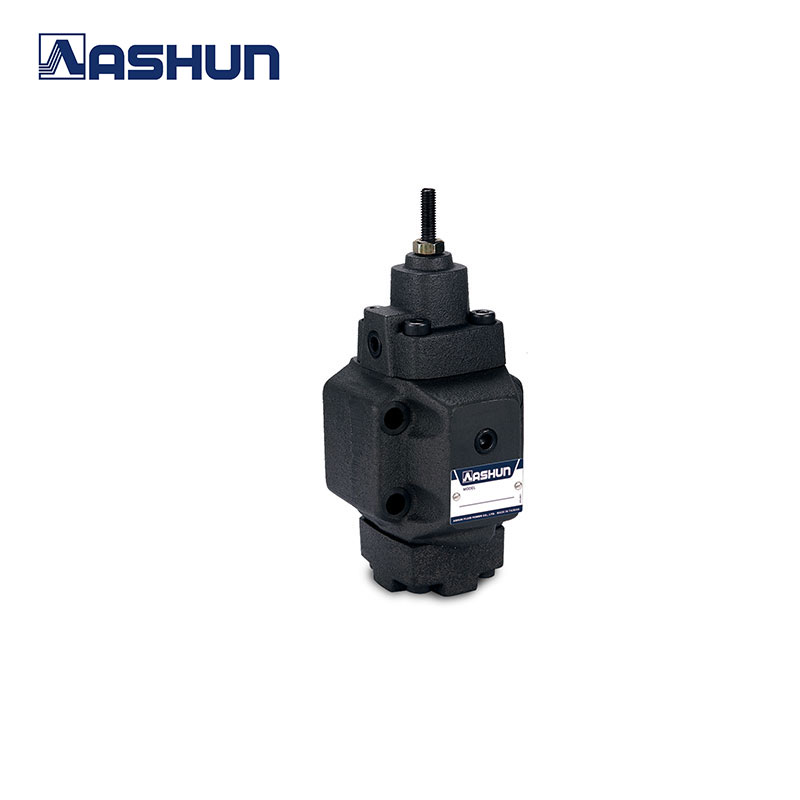

“ASHUN” PRESSURE CONTROL VALVES
SCV SERIES : PRESSURE CONTROL VALVES
| MODEL | VALVE SIZE |
TYPE OF CONNECTION |
PRESSURE ADJ.RANGE |
**VALVE TYPE |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| SCV-03G-A-** | 3/8″ | G : Sub-Plated Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
1 : Low Pressure Relief Valve 2 : Sequence Valve 3 : Sequence Valve 4 : Unloading Valve |
210 | 50 |
| SCV-03G-B-** | ||||||
| SCV-03G-C-** | ||||||
| SCV-03T-A-** | T : Thread Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
||||
| SCV-03T-B-** | ||||||
| SCV-03T-C-** | ||||||
| SCV-06G-A-** | 3/4″ | G : Sub-Plated Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
1 : Low Pressure Relief Valve 2 : Sequence Valve 3 : Sequence Valve 4 : Unloading Valve |
210 | 125 |
| SCV-06G-B-** | ||||||
| SCV-06G-C-** | ||||||
| SCV-06T-A-** | T : Thread Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
||||
| SCV-06T-B-** | ||||||
| SCV-06T-C-** | ||||||
| SCV-10G-A-** | 1-1/4″ | G : Sub-Plated Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
1 : Low Pressure Relief Valve 2 : Sequence Valve 3 : Sequence Valve 4 : Unloading Valve |
210 | 250 |
| SCV-10G-B-** | ||||||
| SCV-10G-C-** | ||||||
| SCV-10T-A-** | T : Thread Type | A : 3-35bar B : 7-10 bar C : 14-140bar |
||||
| SCV-10T-B-** | ||||||
| SCV-10T-C-** |
