Description
“ASHUN” PRESSURE CONTROL VALVES

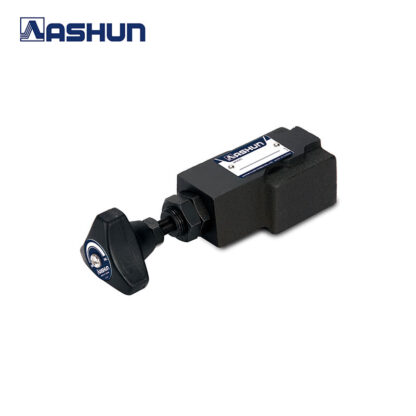

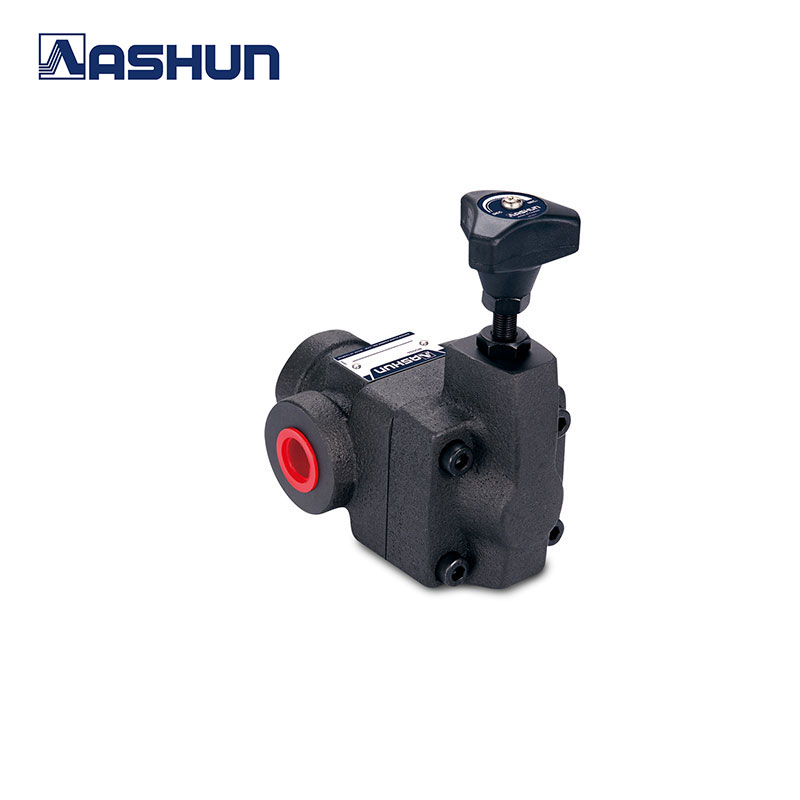

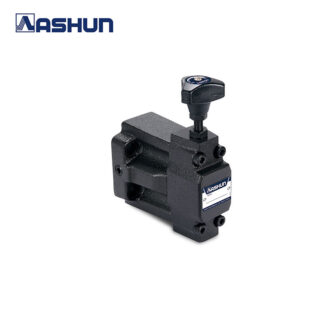

RV Series RELIEF VALVES
| MODEL | VALVE SIZE | TYPE OF CONNECTION |
PRESSURE ADJ.RANGE |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| RV-01G-B-10 | 1/8″ | G : Sub-plated Type | B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 2 |
| RV-01G-C-10 | |||||
| RV-01G-H-10 | |||||
| RV-01T-B-10 | T : Thread Type | ||||
| RV-01T-C-10 | |||||
| RV-01T-H-10 | |||||
| RV-02G-B-10 | 1/4″ | G : Sub-plated Type | B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 16 |
| RV-02G-C-10 | |||||
| RV-02G-H-10 | |||||
| RV-02T-B-10 | T : Thread Type | ||||
| RV-02T-C-10 | |||||
| RV-02T-H-10 | |||||
| RV-03G-B-10 | 3/8″ | G : Sub-plated Type | B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 100 |
| RV-03G-C-10 | |||||
| RV-03G-H-10 | |||||
| RV-03T-B-10 | T : Thread Type | ||||
| RV-03T-C-10 | |||||
| RV-03T-H-10 | |||||
| RV-04T-B-10 | 1/2″ | T : Thread Type | B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 100 |
| RV-04T-C-10 | |||||
| RV-04T-H-10 | |||||
| RV-06G-B-10 | 3/4″ | G : Sub-plated Type | B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 200 |
| RV-06G-C-10 | |||||
| RV-06G-H-10 | |||||
| RV-06T-B-10 | T : Thread Type | ||||
| RV-06T-C-10 | |||||
| RV-06T-H-10 | |||||
| RV-10G-B-10 | 1-1/4″ | G : Sub-plated Type | B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 400 |
| RV-10G-C-10 | |||||
| RV-10G-H-10 | |||||
| RV-10T-B-10 | T : Thread Type | ||||
| RV-10T-C-10 | |||||
| RV-10T-H-10 |
