Description

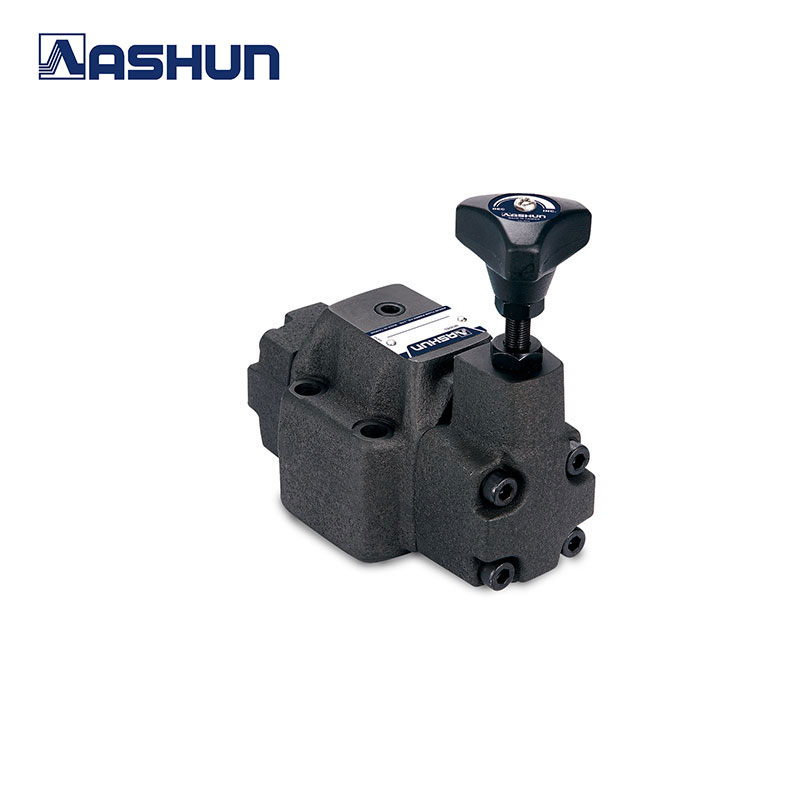

“ASHUN” PRESSURE CONTROL VALVES
BRCV SERIES : PRESSURE REDUCING VALVES AND CHECK VALVES
| MODEL | VALVE SIZE |
TYPE OF CONNECTION |
PRESSURE ADJ.RANGE |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| BRCV-03G-A-10 | 3/8″ | G : SUB-PLATED TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 50 |
| BRCV-03G-B-10 | |||||
| BRCV-03G-C-10 | |||||
| BRCV-03G-H-10 | |||||
| BRCV-03T-A-10 | T : THREAD TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
|||
| BRCV-03T-B-10 | |||||
| BRCV-03T-C-10 | |||||
| BRCV-03T-H-10 | |||||
| BRCV-06G-A-10 | 3/4″ | G : SUB-PLATED TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 125 |
| BRCV-06G-B-10 | |||||
| BRCV-06G-C-10 | |||||
| BRCV-06G-H-10 | |||||
| BRCV-06T-A-10 | T : THREAD TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
|||
| BRCV-06T-B-10 | |||||
| BRCV-06T-C-10 | |||||
| BRCV-06T-H-10 | |||||
| BRCV-10G-A-10 | 1-1/4″ | G : SUB-PLATED TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 250 |
| BRCV-10G-B-10 | |||||
| BRCV-10G-C-10 | |||||
| BRCV-10G-H-10 | |||||
| BRCV-10T-A-10 | T : THREAD TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
|||
| BRCV-10T-B-10 | |||||
| BRCV-10T-C-10 | |||||
| BRCV-10T-H-10 |
