“ASHUN” PRESSURE CONTROL VALVES

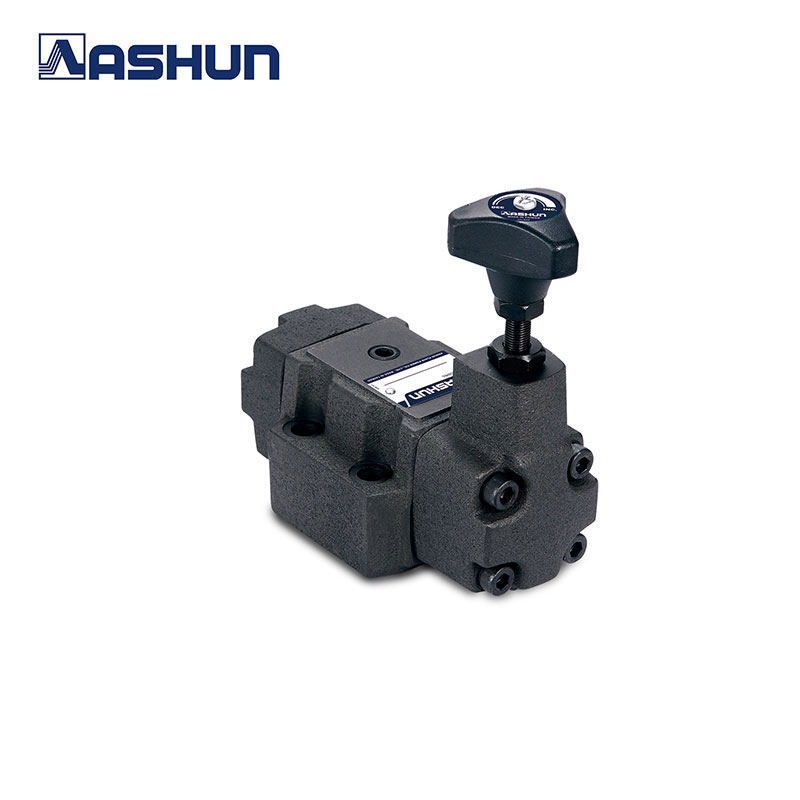

BRV SERIES : PRESSURE REDUCING VALVES
| MODEL | VALVE SIZE | TYPE OF CONNECTION |
PRESSURE ADJ.RANGE |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| BRV-02G-A-10 | 1/4″ | G : SUB-PLATED TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 40 |
| BRV-02G-B-10 | |||||
| BRV-02G-C-10 | |||||
| BRV-02G-H-10 | |||||
| BRV-02T-A-10 | T : THREAD TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
|||
| BRV-02T-B-10 | |||||
| BRV-02T-C-10 | |||||
| BRV-02T-H-10 | |||||
| BRV-03G-A-10 | 3/8″ | G : SUB-PLATED TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 50 |
| BRV-03G-B-10 | |||||
| BRV-03G-C-10 | |||||
| BRV-03G-H-10 | |||||
| BRV-03T-A-10 | T : THREAD TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
|||
| BRV-03T-B-10 | |||||
| BRV-03T-C-10 | |||||
| BRV-03T-H-10 | |||||
| BRV-06G-A-10 | 3/4″ | G : SUB-PLATED TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 125 |
| BRV-06G-B-10 | |||||
| BRV-06G-C-10 | |||||
| BRV-06G-H-10 | |||||
| BRV-06T-A-10 | T : THREAD TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
|||
| BRV-06T-B-10 | |||||
| BRV-06T-C-10 | |||||
| BRV-06T-H-10 | |||||
| BRV-10G-A-10 | 1-1/4″ | G : SUB-PLATED TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 250 |
| BRV-10G-B-10 | |||||
| BRV-10G-C-10 | |||||
| BRV-10G-H-10 | |||||
| BRV-10T-A-10 | T : THREAD TYPE | A : 3-35 B : 7-10 bar C : 14-140 bar H : 35-120 bar |
|||
| BRV-10T-B-10 | |||||
| BRV-10T-C-10 | |||||
| BRV-10T-H-10 |
