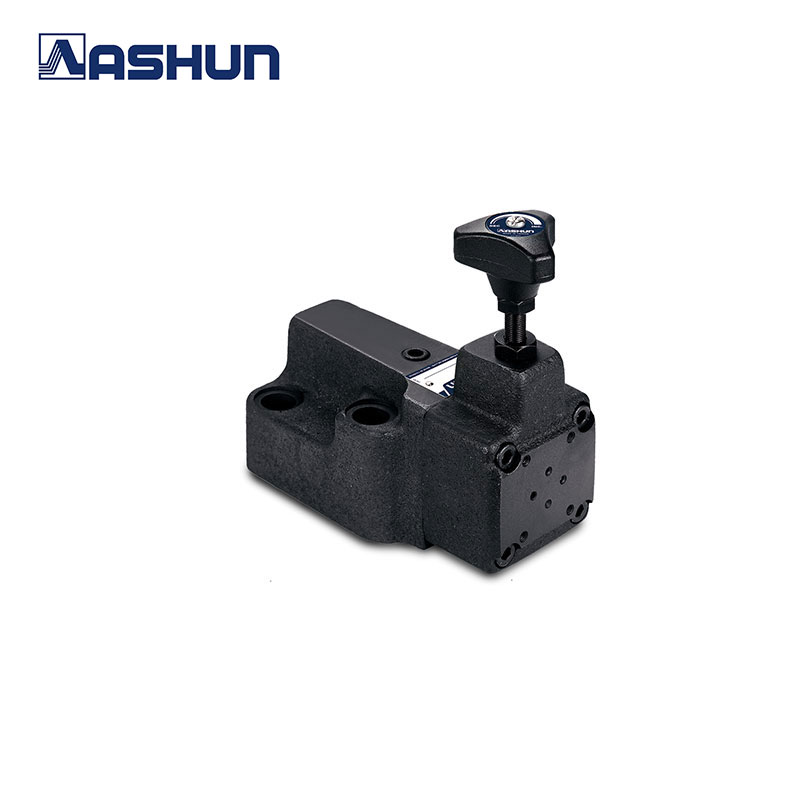

“ASHUN” PRESSURE CONTROL VALVES
SRV SERIES : SOLENOID CONTROLLED RELIEF VALVES
(USE SOLENOID OPERATED DIRECTIONAL VALVES)
| MODEL | VALVE SIZE | TYPE OF CONNECTION |
WORING TYPE | PRESSURE ADJ.RANGE |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| SRV-03G-2P-B-10 | 3/8″ | G : SUB-PLATED TYPE | 2P : 2 SECTION PRESSURE |
B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 100 |
| SRV-03G-2P-C-10 | ||||||
| SRV-03G-2P-H-10 | ||||||
| SRV-03G-3P-B-10 | 3P : 3 SECTION PRESSURE |
|||||
| SRV-03G-3P-C-10 | ||||||
| SRV-03G-3P-H-10 | ||||||
| SRV-04T-2P-B-10 | 1/2″ | T : THREAD TYPE | 2P : 2 SECTION PRESSURE |
B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 100 |
| SRV-04T-2P-C-10 | ||||||
| SRV-04T-2P-H-10 | ||||||
| SRV-04T-3P-B-10 | 3P : 3 SECTION PRESSURE |
|||||
| SRV-04T-3P-C-10 | ||||||
| SRV-04T-3P-H-10 | ||||||
| SRV-06G-2P-B-10 | 3/4″ | G : SUB-PLATED TYPE | 2P : 2 SECTION PRESSURE |
B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 200 |
| SRV-06G-2P-C-10 | ||||||
| SRV-03G-2P-H-10 | ||||||
| SRV-06G-3P-B-10 | 3P : 3 SECTION PRESSURE |
|||||
| SRV-06G-3P-C-10 | ||||||
| SRV-06G-3P-H-10 | ||||||
| SRV-06T-2P-B-10 | T : THREAD TYPE | 2P : 2 SECTION PRESSURE |
||||
| SRV-06T-2P-C-10 | ||||||
| SRV-06T-2P-H-10 | ||||||
| SRV-06T-3P-B-10 | 3P : 3 SECTION PRESSURE |
|||||
| SRV-06T-3P-C-10 | ||||||
| SRV-06T-3P-H-10 | ||||||
| SRV-10G-2P-B-10 | 3/4″ | G : SUB-PLATED TYPE | 2P : 2 SECTION PRESSURE |
B : 7-10 bar C : 14-140 bar H : 35-120 bar |
210 | 400 |
| SRV-10G-2P-C-10 | ||||||
| SRV-10G-2P-H-10 | ||||||
| SRV-10G-3P-B-10 | 3P : 3 SECTION PRESSURE |
|||||
| SRV-10G-3P-C-10 | ||||||
| SRV-10G-3P-H-10 | ||||||
| SRV-10T-2P-B-10 | T : THREAD TYPE | 2P : 2 SECTION PRESSURE |
||||
| SRV-10T-2P-C-10 | ||||||
| SRV-10T-2P-H-10 | ||||||
| SRV-10T-3P-B-10 | 3P : 3 SECTION PRESSURE |
|||||
| SRV-10T-3P-C-10 | ||||||
| SRV-10T-3P-H-10 |
