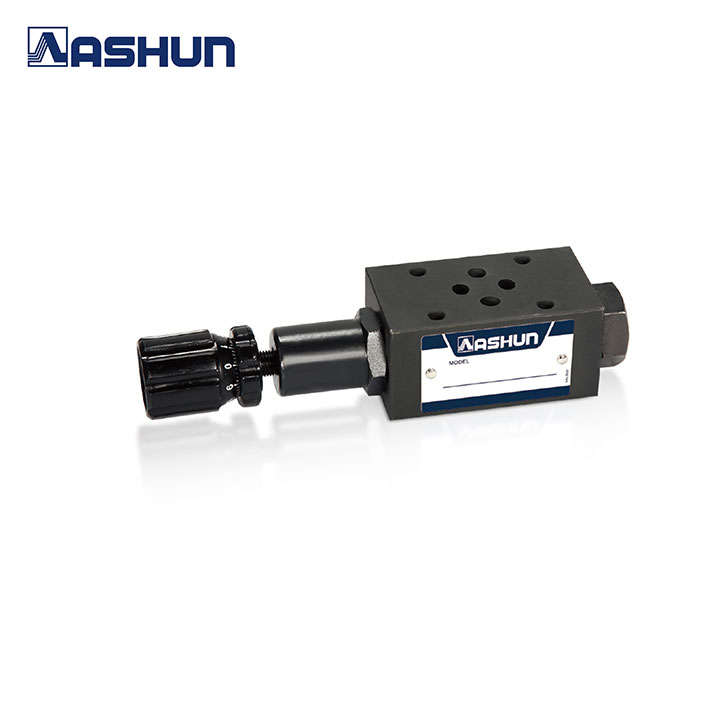

“ASHUN” MODULAR VALVES
MSV SERIES : SEQUENCE MODULAR VALVES
| MODEL | VALVE SIZE |
WORKING TYPE |
PRESSURE ADJ. RANGE (BAR) |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| MSV-02P-A-10 | 1/4″ | P :P Port | A : 3-35 B : 7-70 C : 35-140 H : 70-210 |
250 | 40 |
| MSV-02P-B-10 | |||||
| MSV-02P-C-10 | |||||
| MSV-02P-H-10 | |||||
| MSV-03P-B-10 | 3/8″ | P :P Port | B : 7-70 C : 35-140 H : 70-210 |
250 | 80 |
| MSV-03P-C-10 | |||||
| MSV-03P-H-10 | |||||
| MSV-04P-B-10 | 1/2″ | P :P Port | B : 7-70 C : 35-140 H : 70-210 |
250 | 130 |
| MSV-04P-C-10 | |||||
| MSV-04P-H-10 | |||||
| MSV-06P-B-10 | 3/4″ | P :P Port | B : 7-70 C : 35-140 H : 70-210 |
250 | 190 |
| MSV-06P-C-10 | |||||
| MSV-06P-H-10 |
