Description

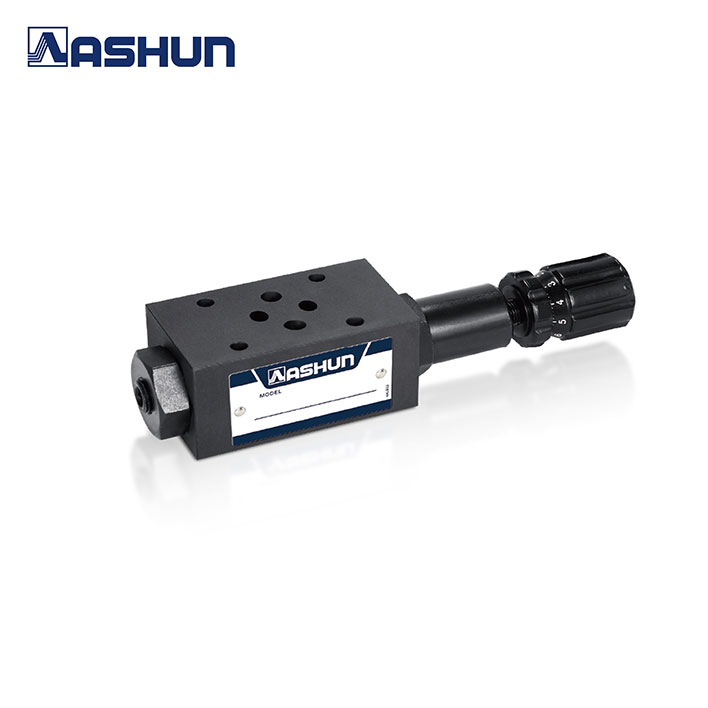

“ASHUN” MODULAR VALVES
MBRV SERIES : REDUCING MODULAR VALVES
| MODEL | VALVE SIZE | WORKING TYPE |
PRESSURE ADJ. RANGE (BAR) |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| MBRV-02P-A-*-*-* | 1/4″ | P :P Port | A : 3-35 B : 7-70 C : 35-140 H : 70-210 |
250 | 40 |
| MBRV-02P-B-*-*-* | |||||
| MBRV-02P-C-*-*-* | |||||
| MBRV-02P-H-*-*-* | |||||
| MBRV-02A-A-*-*-* | A : A Port | A : 3-35 B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-02A-B-*-*-* | |||||
| MBRV-02A-C-*-*-* | |||||
| MBRV-02A-H-*-*-* | |||||
| MBRV-02B-A-*-*-* | B : B Port | A : 3-35 B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-02B-B-*-*-* | |||||
| MBRV-02B-C-*-*-* | |||||
| MBRV-02B-H-*-*-* | |||||
| MBRV-03P-B-*-*-* | 3/8″ | P :P Port | B : 7-70 C : 35-140 H : 70-210 |
250 | 80 |
| MBRV-03P-C-*-*-* | |||||
| MBRV-03P-H-*-*-* | |||||
| MBRV-03A-B-*-*-* | A : A Port | B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-03A-C-*-*-* | |||||
| MBRV-03A-H-*-*-* | |||||
| MBRV-03B-B-*-*-* | B : B Port | B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-03B-C-*-*-* | |||||
| MBRV-03B-H-*-*-* | |||||
| MBRV-04P-B-*-*-* | 1/2″ | P :P Port | B : 7-70 C : 35-140 H : 70-210 |
250 | 130 |
| MBRV-04P-C-*-*-* | |||||
| MBRV-04P-H-*-*-* | |||||
| MBRV-04A-B-*-*-* | A : A Port | B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-04A-C-*-*-* | |||||
| MBRV-04A-H-*-*-* | |||||
| MBRV-04B-B-*-*-* | B : B Port | B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-04B-C-*-*-* | |||||
| MBRV-04B-H-*-*-* | |||||
| MBRV-06P-B-*-*-* | 3/4″ | P :P Port | B : 7-70 C : 35-140 H : 70-210 |
250 | 190 |
| MBRV-06P-C-*-*-* | |||||
| MBRV-06P-H-*-*-* | |||||
| MBRV-06A-B-*-*-* | A : A Port | B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-06A-C-*-*-* | |||||
| MBRV-06A-H-*-*-* | |||||
| MBRV-06B-B-*-*-* | B : B Port | B : 7-70 C : 35-140 H : 70-210 |
250 | ||
| MBRV-06B-C-*-*-* | |||||
| MBRV-06B-H-*-*-* |
