Description

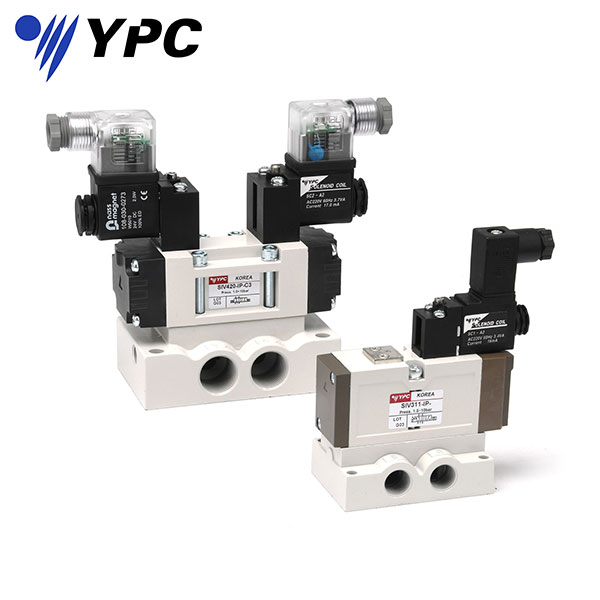

“YPC” 5/2 , 5/3 Way Solenoid valve ISO Standard base
SIV Series Sub-base Mounting type
– ISO0-15407-1/VDMA24563
– ISO1
– ISO2
SIV Series Sub-base Mounting type
– ISO0-15407-1/VDMA24563
– ISO1
– ISO2
| Model | Sub-Base | Function | Coil | Download |
| SIV211-IP | SIB21-S(1/4) |
5/2 Single coil
|
AC24
SC1-A4 SC2-A4 SG1-A4 SG2-A4 SD1-A4 SD2-A4 AC110
SC1-A1 SC2-A1 SG1-A1 SG2-A1 SD1-A1 SD2-A1 AC220
SC1-A2 SC2-A2 SG1-A2 SG2-A2 SD1-A2 SD2-A2 DC12
SC1-D2 SC2-D2 SG1-D2 SG2-D2 SD1-D2 SD2-D2 DC24
SC1-D4 |
|
| SIV311-IP | SIB31-S(1/4) | |||
| SIV411-IP | SIB41-SP(1/4) , SIB42-SP(3/8), SIB43-SP(1/2) | |||
| SIV511-IP | SIB53-SP(1/2) , SIB54-SP(3/4) | |||
| SIV612-IP | SIB64-SP(3/4), SIB65-SP(1″) | |||
| SIV220-IP | SIB21-S(1/4) |
5/2 Double coil
|
||
| SIV320-IP | SIB31-S(1/4) | |||
| SIV420-IP | SIB41-SP(1/4) , SIB42-SP(3/8), SIB43-SP(1/2) | |||
| SIV520-IP | SIB53-SP(1/2) , SIB54-SP(3/4) | |||
| SIV620-IP | SIB64-SP(3/4), SIB65-SP(1″) | |||
| SIV233-IP | SIB21-S(1/4) |
5/3 Closed center
Double coil |
||
| SIV333-IP | SIB31-S(1/4) | |||
| SIV433-IP | SIB41-SP(1/4) , SIB42-SP(3/8), SIB43-SP(1/2) | |||
| SIV533-IP | SIB53-SP(1/2) , SIB54-SP(3/4) | |||
| SIV633-IP | SIB64-SP(3/4), SIB65-SP(1″) | |||
| SIV243-IP | SIB21-S(1/4) |
5/3 Exhaust center Double coil
|
||
| SIV343-IP | SIB31-S(1/4) | |||
| SIV443-IP | SIB41-SP(1/4) , SIB42-SP(3/8), SIB43-SP(1/2) | |||
| SIV543-IP | SIB53-SP(1/2) , SIB54-SP(3/4) | |||
| SIV643-IP | SIB64-SP(3/4), SIB65-SP(1″) | |||
| SIV253-IP | SIB21-S(1/4) |
5/3 Pressure center Double coil
|
||
| SIV353-IP | SIB31-S(1/4) | |||
| SIV453-IP | SIB41-SP(1/4) , SIB42-SP(3/8), SIB43-SP(1/2) | |||
| SIV553-IP | SIB53-SP(1/2) , SIB54-SP(3/4) | |||
| SIV653-IP | SIB64-SP(3/4), SIB65-SP(1″) |
