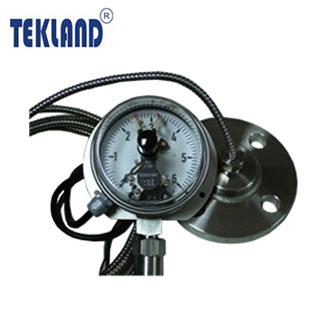

“TEKLAND” IH-C Capillary Diaphragm Pressure Gauge W/Contact
Description :
ดาวโหลดสเปคสินค้า
– Pressure gauge Used With Diaphragm Seals Are When The Pressure Measuring
Instrument’s Sensing Element Should Not Come In Contact With The Process Medium.
While Connection A Capillary Tube Is Because The Pressure Gauges Can Be Located
For Better Operator Visibility With Contacts. It Can Be Used
As An electrical Circuit Switch To Avoid Equipment Breakdown From High Switch Frequency.
These Gauges Can Be Configured For A 1NO+1NC Output Or A 1NO Or 1NC.
– Diaphragms Are Available With 9 Types Based On User’s Request As Described In The
Diaphragm Part.
– Pressure Range : -76cmhg – 0 – 1000kg/cm2 (inHg/Psi)
– Material : Gauge Case’ Bezel : SUS304, Wetted Parts : SUS316 Or Brass
