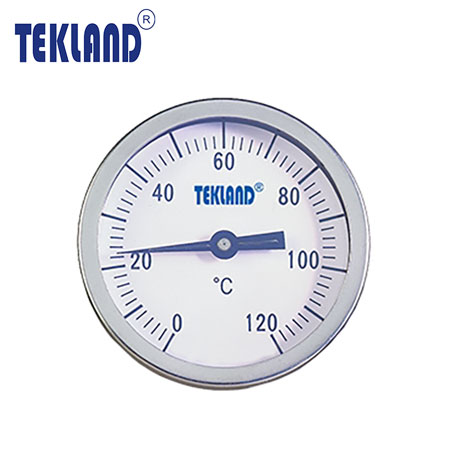

“TEKLAND” BL TYPE
Bi-Metal Thermometer , Back Connection
เทอร์โมมิเตอร์หน้าปัดกลม แกนออกหลัง
ดาวโหลดสเปคสินค้า
Description :
Combines With Robust Construction And Eliminates The Need For Any Capillary Tubing That Makes
The Thermometer Suitable For The Most Stringent Environmental Conditions And Gives An
Accurate Indication Every Time With The Direct Drive From Coil To Pointer. The Principal Is That
Two Strips Made Of Different Metallic Materials Are Fused Together As A Spiral Or Rod. The Strip
Will Wind, Unwind Or Bend As The Temperature Changes Because One Of The Two Materials In
The Strip Will Contract Or Expand To A Greater Degree Than The Other Will. The Free End Of The
Strip Is Attached To A Pointer That Will Indicate The Temperature.
– Case & Connection Material : 304 Stainless Steel
– Diameter : 1″ , 1.5″ , 2″ , 3″ , 4″ , 5″ , 6″
– Parts Of Connection : SUS316 : Others Can Be Customized.
– Sensor Bulb : SUS304 Or SUS316
– Sensor Bulb Diameter : Standard 6.35mm , 4 – 12mm Can Be Made By Ordered
– Dial Scale Plate : Aluminum : White Background With Black Figures & Marks
– Temperature Range : -50 – +600 °C
– Length Of Sensor Bulb : 2″ – 60″ By Orders
– Accuracy : 1.0% On Full Scale
– HL Electric Contacts Can Be Installed Additionally.
