Description

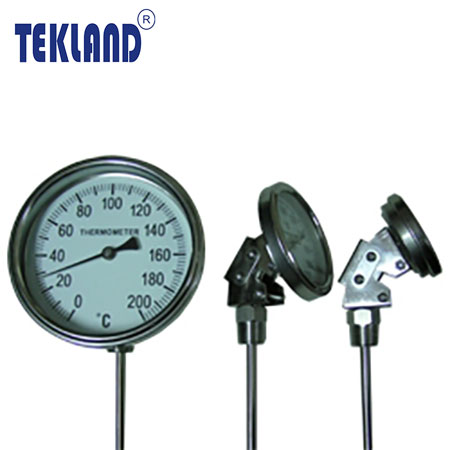

“TEKLAND” BA Bi-Metal Thermometer
Bottom Connection W/Angle Adjustable
ดาวโหลดสเปคสินค้า
Description :
Angle Adjustable Bi-Metal Thermometers Allow MoveMent Of The Head Through A Full 90
Degree Rotation Which Permits lts Position To Be Set For A Maximum Readability After Installation.
– Case & Connection Material : 304 Stainless Steel
– Diameter : 3″ , 4″ , 5″ , 6″
– Parts Of Connection : SUS316 : Others Can Be Customized.
– Sensor Bulb : SUS304 Or SUS316
– Sensor Bulb Diameter : Standard 6.35mm , 4 – 12mm Can Be Made By Ordered
– Dial Scale Plate : Aluminum : White Background With Black Figures & Marks
– Temperature Range : -50 – +600 °C
– Length Of Sensor Bulb : 2″ – 60″ By Orders
– Accuracy : 1.0% On Full Scale
– HL Electric Contacts Can Be Installed Additionally.
Bottom Connection W/Angle Adjustable
ดาวโหลดสเปคสินค้า
Description :
Angle Adjustable Bi-Metal Thermometers Allow MoveMent Of The Head Through A Full 90
Degree Rotation Which Permits lts Position To Be Set For A Maximum Readability After Installation.
– Case & Connection Material : 304 Stainless Steel
– Diameter : 3″ , 4″ , 5″ , 6″
– Parts Of Connection : SUS316 : Others Can Be Customized.
– Sensor Bulb : SUS304 Or SUS316
– Sensor Bulb Diameter : Standard 6.35mm , 4 – 12mm Can Be Made By Ordered
– Dial Scale Plate : Aluminum : White Background With Black Figures & Marks
– Temperature Range : -50 – +600 °C
– Length Of Sensor Bulb : 2″ – 60″ By Orders
– Accuracy : 1.0% On Full Scale
– HL Electric Contacts Can Be Installed Additionally.
