Description

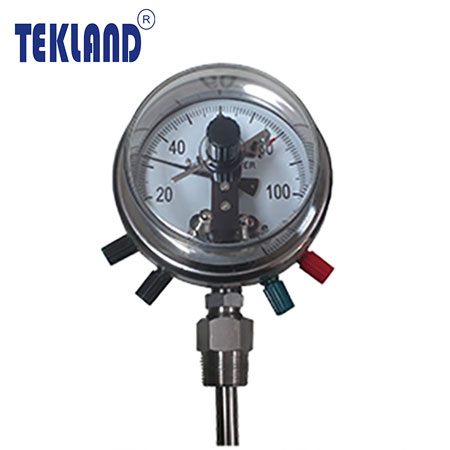

“TEKLAND” BD-HL Bi-Metal Thermometer
Direct Connection With Electrical Contact
ดาวโหลดสเปคสินค้า
Description :
More Easy And Convenient Than BS Or BL Thermometers As A Flexible Thread Is Attached Which
Can Be Fixed Into Tfhe Measuring Instruments Without Removal The Thermometers When
Replacement Is Needed. With Contacts, The Electric Circuit Can Be Open Or Closed By Manual
Set Point. It Isapplicable Where Signal Is Required For Control Or Resistance Or Any Other
Application With Auxillary Relay And Contact. These Theremometers Can Be Configured For
A 1NO+1NC Output Or A 1NO Or A 1NC.
– Case & Connection Material : 304 Stainless Steel
– Parts Of Connection : SUS316 , Others Can Be Customized.
– Sensor Bulb : SUS304 Or SUS316
– Dial Scale Plate : Aluminum , White Background With Back Figures & Marks
– Temperature Range : -50 – +600 °C
– Sensor Bulb Diameter : Standard 6.35mm, 4 – 12mm Can Be Customized.
– Length Of Sensor Bulb : 2″ – 60″ By Orders
– Accuracy : 1.0% On Full Scale
– Back Connection Is An Option.
