Description

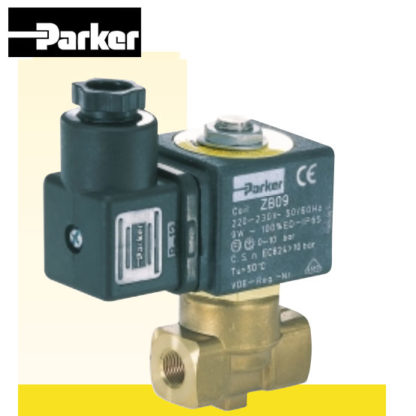

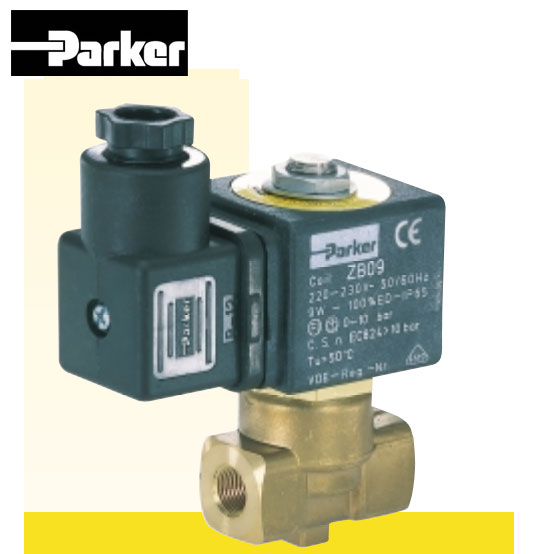

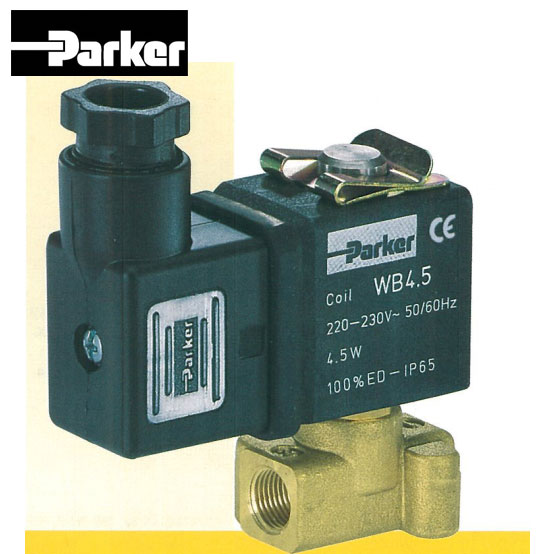

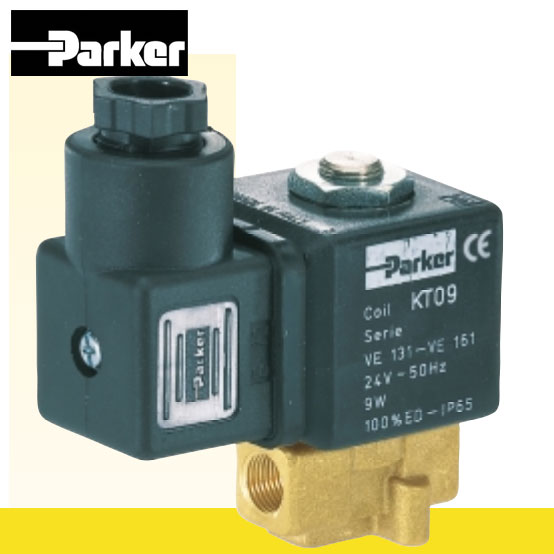

“PARKER” 2/2 Brass Solenoid valve , Direct operated
Normally closed (N.C.) , Seal : Viton
For Water , Air , Light oil , inert gases
131.4 , 146 , 174 Series
|
Model
|
Port size
|
Part
number
|
Working
Temp( ͦC)
|
Working Pressure
(Bar)
|
Coil
|
Model
Coil
|
Download
|
|
| A.C. | D.C. | |||||||
| P-VE131.4BV | 1/8″ | 390465 |
-10 – 140 C
|
0 – 8 | 0 – 6 |
AC110
AC220 AC24 DC12 DC24 |
KT09
KT10 ZB09 ZB12 ZB14 ZB16 ZH14 ZG16 YB09 YB14 YB16 WB4.5 WB5.0 |
|
| P-VE131.4FV | 1/4″ | 390580 | 0 – 8 | 0 – 6 | ||||
| P-VE131.4GV | 1/4″ | 390655 | 0 – 2 | 0 – 1 | ||||
| P-VE146FV | 1/8″ | 363380 |
-10 – 140 C
|
0 – 15 | 0 – 12 | |||
| P-VE146HV | 1/8″ | 363390 | 0 – 10 | 0 – 8 | ||||
| P-VE146WV | 1/4″ | 363435 | 0 – 15 | 0 – 12 | ||||
| P-VE146YV | 1/4″ | 363445 | 0 – 10 | 0 – 8 | ||||
| P-VE146.3KV | 1/4″ | 363457 | 0 – 10 | 0 – 3 | ||||
| P-VE146.3ABV | 1/4″ | 363467 | 0 – 8 | 0 – 1 | ||||
| P-VE174AV | 1/8″ |
-10 – 140 C
|
0 – 20 | 0 – 15 | ||||
| P-VE174BV | 1/8″ | 0 – 15 | 0 – 10 | |||||
| P-VE174FV | 1/8″ | 0 – 10 | 0 – 6 | |||||
| P-VE174.4FV | 1/8″ | 0 – 10 | 0 – 6 | |||||
| P-VE174.4WV | 1/4″ | 0 – 10 | 0 – 6 | |||||
