Description

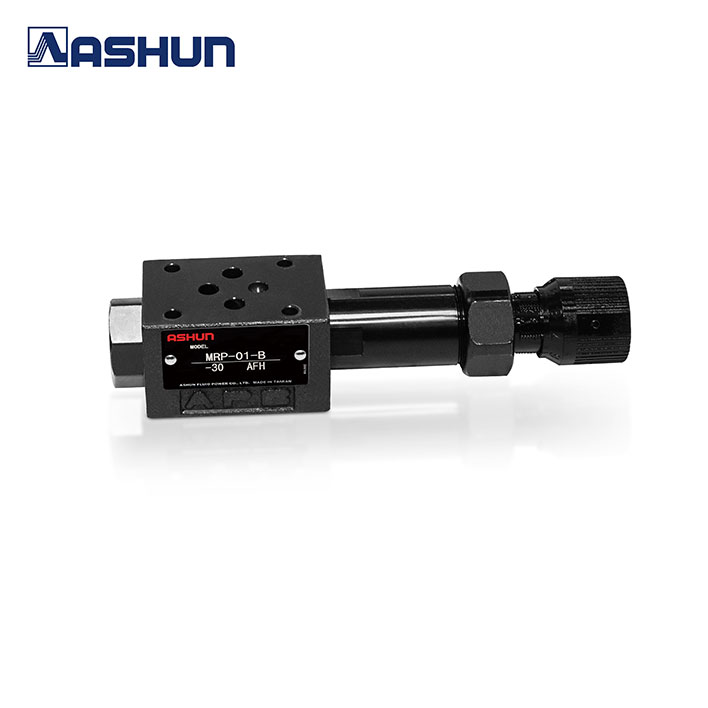

“ASHUN” 01 MODULAR VALVES
MRP / MRA / MRB SERIES : PRESSURE REDUCING MODULAR VALVES TYPE
| MODEL | VALVE SIZE | PRESSURE ADJ. RANGE (BAR) |
WORKING TYPE |
MAX OPERATED PRESSURE (BAR) |
MAX. FLOW (L/MIN) |
| MRP-01A-30 | 1/8″ | A : 1.5-35 B : 7-10 C : 35-140 H : 70-210 |
For P-Line | 315 | 40 |
| MRP-01B-30 | |||||
| MRP-01C-30 | |||||
| MRP-01H-30 | |||||
| MRA-01A-30 | 1/8″ | A : 1.5-35 B : 7-10 C : 35-140 H : 70-210 |
For A-Line | 315 | 40 |
| MRA-01B-30 | |||||
| MRA-01C-30 | |||||
| MRA-01H-30 | |||||
| MRB-01A-30 | 1/8″ | A : 1.5-35 B : 7-10 C : 35-140 H : 70-210 |
For B-Line | 315 | 40 |
| MRB-01B-30 | |||||
| MRB-01C-30 | |||||
| MRB-01H-30 |
