"YPC" 3/2 , 5/2 , 5/3 Solenoid valve, SF1000 / SF2000 / SF3000 / SF4000 / SF5000 / SF6000 Series
"YPC" 3/2 , 5/2 , 5/3 Solenoid valve, SF1000 / SF2000 / SF3000 / SF4000 / SF5000 / SF6000 Series - Image 2
"YPC" 3/2 , 5/2 , 5/3 Solenoid valve, SF1000 / SF2000 / SF3000 / SF4000 / SF5000 / SF6000 Series - Image 3
"YPC" 3/2 , 5/2 , 5/3 Solenoid valve, SF1000 / SF2000 / SF3000 / SF4000 / SF5000 / SF6000 Series - Image 4
"YPC" 3/2 , 5/2 , 5/3 Solenoid valve, SF1000 / SF2000 / SF3000 / SF4000 / SF5000 / SF6000 Series - Image 5

“YPC” 3/2 , 5/2 , 5/3 Solenoid valve, SF1000 / SF2000 / SF3000 / SF4000 / SF5000 / SF6000 Series

Description

“YPC” 3/2 , 5/2 , 5/3 Way Solenoid valve
SF Series SF1000 SF2000 SF3000 SF4000 SF5000 SF6000

Model Port size Function Coil Manifold Download
SF1601-IP M5
3/2 Normally closed
Single coil
AC24
SC1-A4
SC2-A4
SG1-A4
SG2-A4
SD1-A4
SD2-A4

AC110
SC1-A1
SC2-A1
SG1-A1
SG2-A1
SD1-A1
SD2-A1

AC220
SC1-A2
SC2-A2
SG1-A2
SG2-A2
SD1-A2
SD2-A2

DC12
SC1-D2
SC2-D2
SG1-D2
SG2-D2
SD1-D2
SD2-D2

DC24
SC1-D4
SC2-D4
SG1-D4
SG2-D4
SD1-D4
SD2-D4

 MF1300-xx
SF2601-IP 1/8″ MF2300-xx
SF4601-IP 1/4″ MF4300-xx
SF5601-IP 3/8″ MF5300-xx
SF6601-IP 1/2″ MF6300-xx

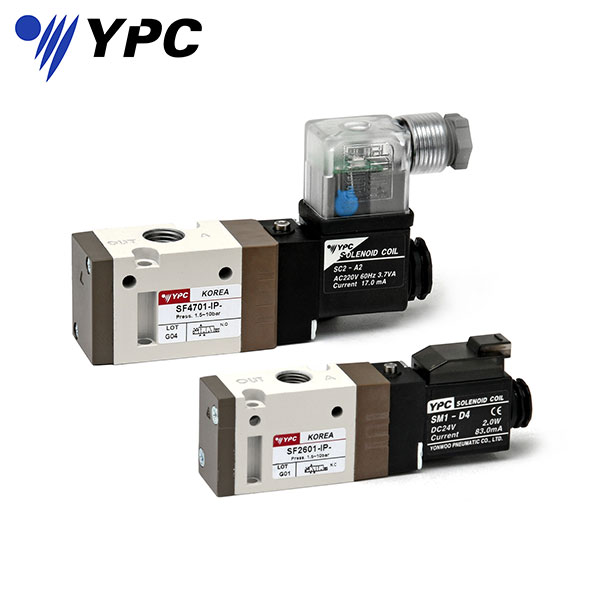

SF1701-IP M5
3/2 Normally open
Single coil
 MF1300-xx
SF2701-IP 1/8″ MF2300-xx
SF4701-IP 1/4″ MF4300-xx
SF5701-IP 3/8″ MF5300-xx
SF6701-IP 1/2″ MF6300-xx
SF1800-IP M5
3/2 Double coil
 MF1300-xx
SF2800-IP 1/8″ MF2300-xx
SF4800-IP 1/4″ MF4300-xx
SF5800-IP 3/8″ MF5300-xx
SF6800-IP 1/2″ MF6300-xx

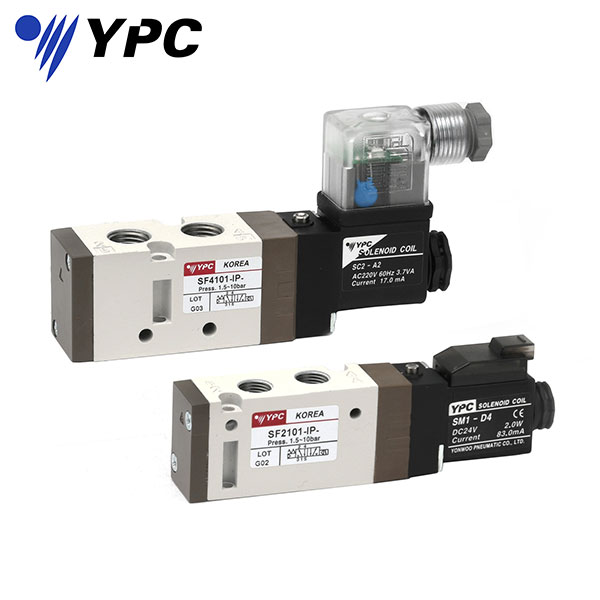

SF1101-IP M5
5/2 Single coil
 MF1500-xx
SF2101-IP 1/8″ MF2500-xx
SF3101-IP 1/8″ MF3500-xx
SF4101-IP 1/4″ MF4500-xx
SF5101-IP 3/8″ MF5500-xx
SF6101-IP 1/2″ MF6500-xx
SF1200-IP M5
5/2 Double coil
 MF1500-xx
SF2200-IP 1/8″ MF2500-xx
SF3200-IP 1/8″ MF3500-xx
SF4200-IP 1/4″ MF4500-xx
SF5200-IP 3/8″ MF5500-xx
SF6200-IP 1/2″ MF6500-xx

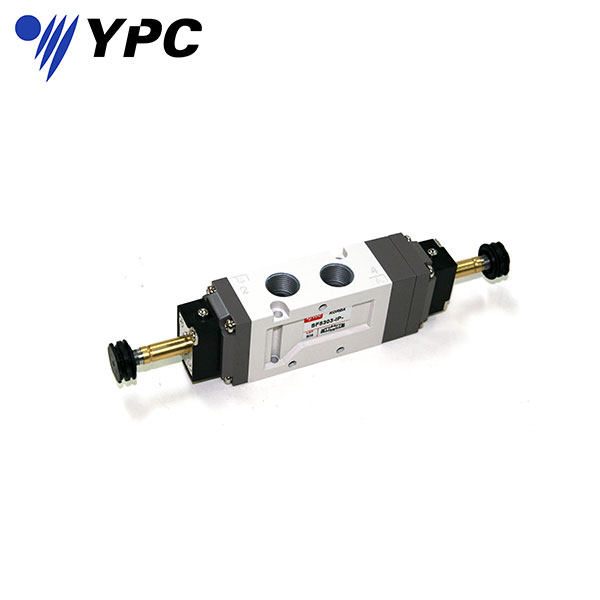

SF1303-IP M5
5/3 Closed center
Double coil
 MF1500-xx
SF2303-IP 1/8″ MF2500-xx
SF3303-IP 1/8″ MF3500-xx
SF4303-IP 1/4″ MF4500-xx
SF5303-IP 3/8″ MF5500-xx
SF6303-IP 1/2″ MF6500-xx
SF1403-IP M5
5/3 Exhaust center
Double coil
 MF1500-xx
SF2403-IP 1/8″ MF2500-xx
SF3403-IP 1/8″ MF3500-xx
SF4403-IP 1/4″ MF4500-xx
SF5403-IP 3/8″ MF5500-xx
SF6403-IP 1/2″ MF6500-xx
SF1503-IP M5
5/3 Pressure center
Double coil
 MF1500-xx
SF2503-IP 1/8″ MF2500-xx
SF3503-IP 1/8″ MF3500-xx
SF4503-IP 1/4″ MF4500-xx
SF5503-IP 3/8″ MF5500-xx
SF6503-IP 1/2″ MF6500-xx
