Description

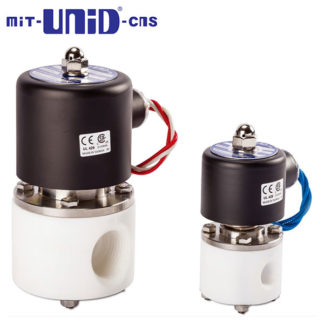

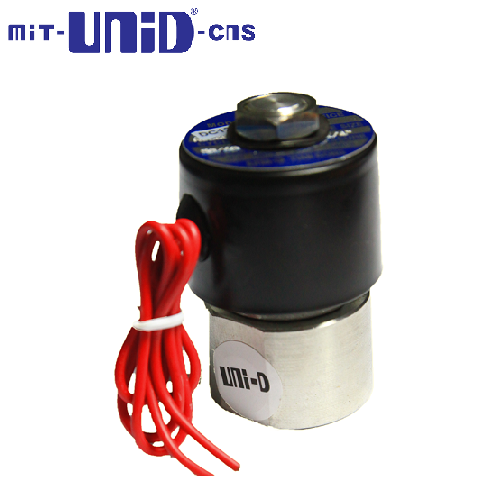

“UNI-D” 2/2 Stainless Solenoid valve , Normally closed (N.C.)
Direct acton , For : Air , Water , Chemicals , Steam (H class)
UF Series
Direct acton , For : Air , Water , Chemicals , Steam (H class)
UF Series
| Model | Port size | Temp ( ͦC) | Range Pressure | COIL | Download |
| UF-06 | 1/8″ | -5 – +99 ͦC | 0 – 1.0 Mpa |
AC24
AC110 AC220 DC12 DC24 |
|
| UF-08 | 1/4″ | -5 – +99 ͦC | 0 – 1.0 Mpa | ||
| UF-10 | 3/8″ | -5 – +99 ͦC | 0 – 1.0 Mpa | ||
| UF-06-H | 1/8″ | -5 – +185 ͦC | 0 – 1.0 Mpa | ||
| UF-08-H | 1/4″ | -5 – +185 ͦC | 0 – 1.0 Mpa | ||
| UF-10-H | 3/8″ | -5 – +185 ͦC | 0 – 1.0 Mpa |
