Description

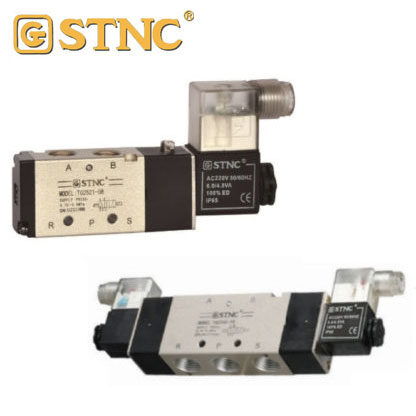

“STNC” 3/2 , 5/2 , 5/3 Way Solenoid valve
TG Series
| Model | Port size | Function | Coil | Manifold | Download |
| TG2311-06 | 1/8″ |
3/2 Way
Single coil |
AC24
AC110 AC220 AC380 DC12 DC24 |
G230-xx
|
|
| TG2321-08 | 1/4″ | ||||
| TG2331-10 | 3/8″ | ||||
| TG2341-15 | 1/2″ | ||||
| TG2511-06 | 1/8″ |
5/2 Way
Single coil |
G100-xx | ||
| TG2521-08 | 1/4″ | G200-xx | |||
| TG2531-10 | 3/8″ | G300-xx | |||
| TG2541-15 | 1/2″ | G400-xx | |||
| TG2512-06 | 1/8″ |
5/2 Way
Double coil |
G100-xx | ||
| TG2522-08 | 1/4″ | G200-xx | |||
| TG2532-10 | 3/8″ | G300-xx | |||
| TG2542-15 | 1/2″ | G400-xx | |||
| TG3512-06C | 3/8″ |
5/3 Closed center
Double coil |
G100-xx | ||
| TG3522-08C | 1/2″ | G200-xx | |||
| TG3532-10C | M5 | G300-xx | |||
| TG3542-15C | 1/8″ | G400-xx | |||
| TG3512-06E | 3/8″ |
5/3 Release center
Double coil |
G100-xx | ||
| TG3522-08E | 1/2″ | G200-xx | |||
| TG3532-10E | M5 | G300-xx | |||
| TG3542-15E | 1/8″ | G400-xx | |||
| TG3512-06P | 3/8″ |
5/3 Pressure center
Double coil |
G100-xx | ||
| TG3522-08P | 1/2″ | G200-xx | |||
| TG3532-10P | M5 | G300-xx | |||
| TG3542-15P | 1/8″ | G400-xx |
