Description

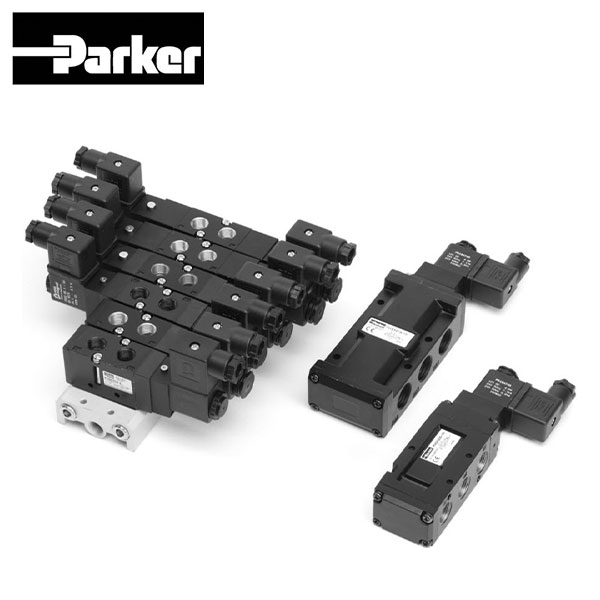

“PARKER” 3/2 ,5/2 , 5/3 Way Pilot operated solenoid valve
PHS320S , PHS500 , PHS510 , PHS520 , PHS530 , PHS540 , PHS541 Series
| Model | Port size | Function | Temp ( ͦC) | Pressure Range (MPa) |
COIL | Manifold | Download |
| PHS320S-8 | 1/4″ | 3/2 Single coil NO / NC | 5 – 60 C | 0.15 – 0.9 |
AC110
AC220
DC24 PEC5-24V-D
PEC5-110V-D PEC5-220V-D PES5-L-24V
PEC5-L-110V PEC5-L-220V |
PHS510-M*
PHS520-M* PHS530-M* *2-9 station
|
Download |
| PHS500S-M5 | M5 |
5/2 Single coil
|
5 – 60 C
|
1.15 – 1.0 | Download |
||
| PHS510S-6 | 1/8″ | 0.15 – 0.9 | Download |
||||
| PHS520S-8 | 1/4″ | 0.15 – 0.9 | Download |
||||
| PHS530S-10 | 3/8″ | 0.15 – 0.9 | Download |
||||
| PHS541S-10 | 3/8″ | 0.15 – 0.9 | |||||
| PHS541S-15 | 1/2″ | 0.15 – 0.9 | |||||
| PHS540S-10 | 3/8″ | 0.15 – 0.9 | |||||
| PHS540S-15 | 1/2″ | 0.15 – 0.9 | |||||
| PHS500D-M5 | M5 |
5/2 Double coil
|
5 – 60 C
|
1.15 – 1.0 | Download |
||
| PHS510D-6 | 1/8″ | 0.15 – 0.9 | Download |
||||
| PHS520D-8 | 1/4″ | 0.15 – 0.9 | Download |
||||
| PHS530D-10 | 3/8″ | 0.15 – 0.9 | Download |
||||
| PHS541D-10 | 3/8″ | 0.15 – 0.9 | |||||
| PHS541D-15 | 1/2″ | 0.15 – 0.9 | |||||
| PHS540D-10 | 3/8″ | 0.15 – 0.9 | |||||
| PHS540D-15 | 1/2″ | 0.15 – 0.9 | |||||
| PHS500C-M5 | M5 |
5/3 Closed center
|
5 – 60 C
|
0.2 – 1.0 | Download |
||
| PHS510C-6 | 1/8″ | 0.2 – 0.9 | Download |
||||
| PHS520C-8 | 1/4″ | 0.2 – 0.9 | Download |
||||
| PSH530C-10 | 3/8″ | 0.2 – 0.9 | Download |
||||
| PHS500E-M5 | M5 |
5/3 Exhaust center
|
5 – 60 C
|
0.2 – 1.0 | Download |
||
| PHS510E-6 | 1/8″ | 0.2 – 0.9 | Download |
||||
| PHS520E-8 | 1/4″ | 0.2 – 0.9 | Download |
||||
| PHS530E-10 | 3/8″ | 0.2 – 0.9 | Download |
||||
| PHS500P-M5 | M5 |
5/3 Pressure center
|
5 – 60 C
|
0.2 – 1.0 | Download |
||
| PHS510P-6 | 1/8″ | 0.2 – 0.9 | Download |
||||
| PHS520P-8 | 1/4″ | 0.2 – 0.9 | Download |
||||
| PHS530P-10 | 3/8″ | 0.2 – 0.9 | Download |
