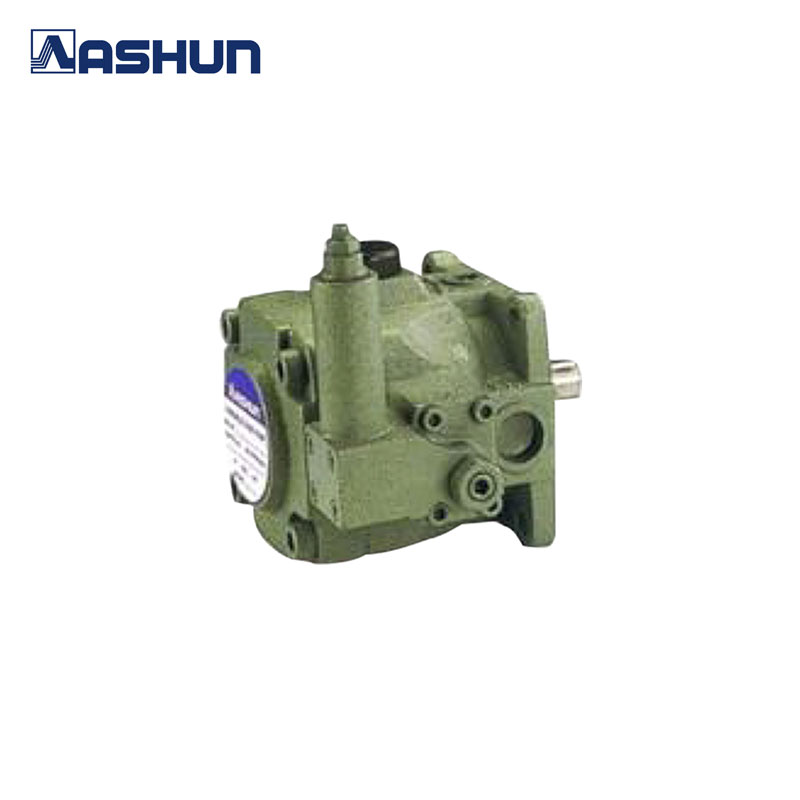

“ASHUN” VARIABLE DISPLACEMENT VANE PUMPS
HVP SERIES
HVP SERIES
| MODEL | OUTPUT FLOW | MAX. | PORTS SIZE | ||
| AT3.5KG/CM2 | OPERATING | ||||
| 1800r.p.m. | PRESSURE | OUT | IN | DR | |
| L/min | (kgf/cm2) | ||||
| HVP-30 | 30 | 140 (A3) | 1/2 | 3/4 | 1/4 |
| HVP-40 | 40 | 140 (A3) | 1/2 | 3/4 | 1/4 |
| MODEL | OUTPUT FLOW | MAX. | PORTS SIZE | ||
| AT3.5KG/CM2 | OPERATING | ||||
| 1800r.p.m. | PRESSURE | OUT | IN | DR | |
| L/min | (kgf/cm2) | ||||
| HVP-30 | 30 | 140 (A3) | 1/2 | 3/4 | 1/4 |
| HVP-40 | 40 | 140 (A3) | 1/2 | 3/4 | 1/4 |
