Description
| Model | I.D | O.D | Length | IN/OUT | Max Pressure |
Housing Material |
LxWxH (mm) |
N.W/pc |

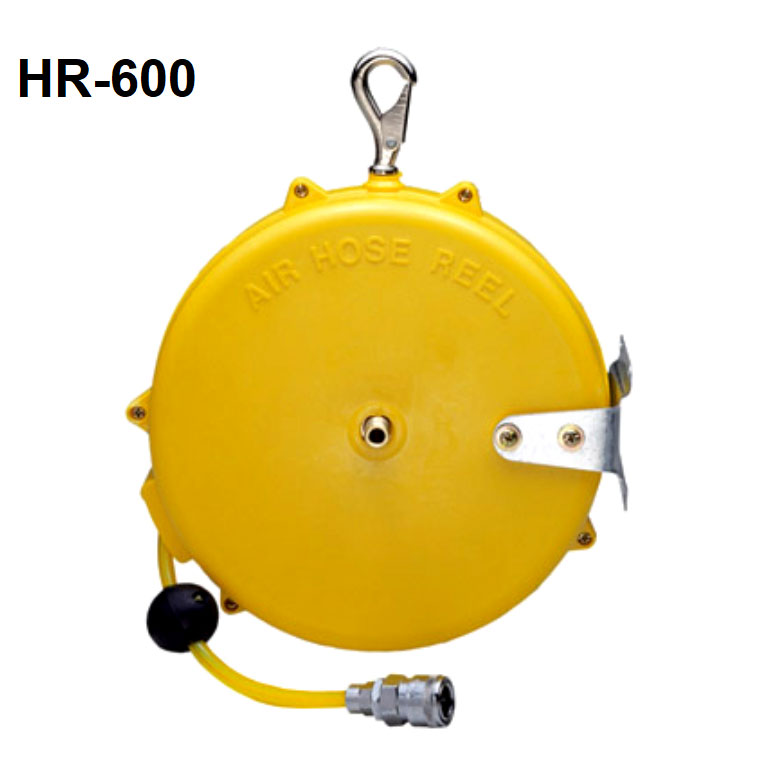

| HR-600 | 5mm | 8mm | 8M (27ft) | 1/4″ | 200 psi | Plastic | 265x95x270 | 1.6kg |

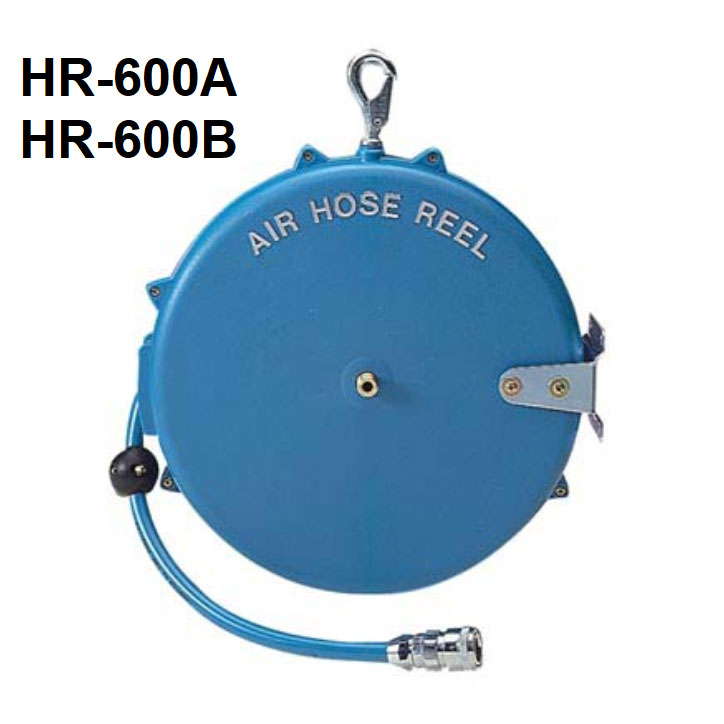

| HR-600A | 8mm | 12mm | 7.5M (25ft) |
1/4″
|
200 psi
|
Plastic
|
310x95x350
|
2.5kg
|
| HR-600B | 6.5mm | 10mm | 8M (27ft) | |||||

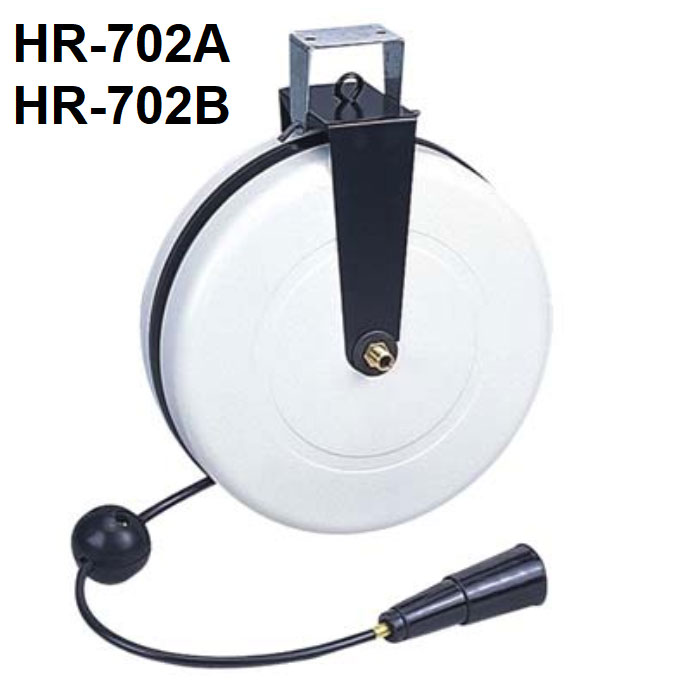

| HR702A | 8mm | 12mm | 9M (30ft) |
1/4″
|
300 psi
|
Steel
|
310x110x330
|
4kg
|
| HR702B | 6.5mm | 10mm | 10M (33ft) | |||||

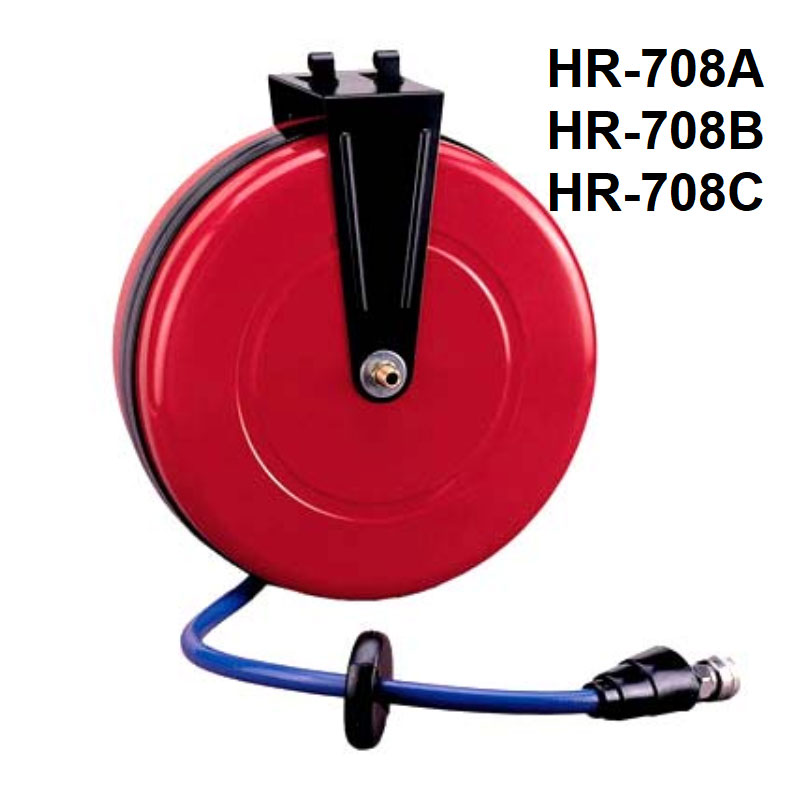

| HR-708A | 3/8″ | – | 12M (40ft) |
1/4″
|
300 psi
|
Steel
|
340x150x355
|
6.5kg
|
| HR-708B | 1/4″ | – | 15M (50ft) | |||||
| HR-708C | 5/16″ | – | 15M (50ft) | |||||

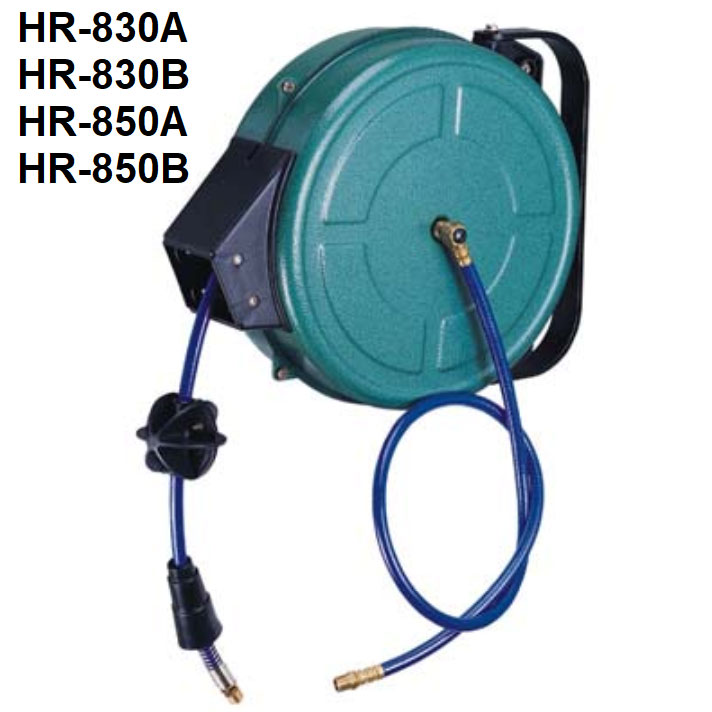

| HR-830A | 5/16″ | – | 9M (30ft) |
1/4″
|
300 psi
|
Steel
|
350x140x370
|
5.5kg
|
| HR-830B | 1/4″ | – | 10M (33ft) | |||||
| HR-850A | 3/8″ | – | 12M (40ft) |
390x150x410
|
6.5kg
|
|||
| HR-850B | 5/16″ | – | 15M (50ft) | |||||

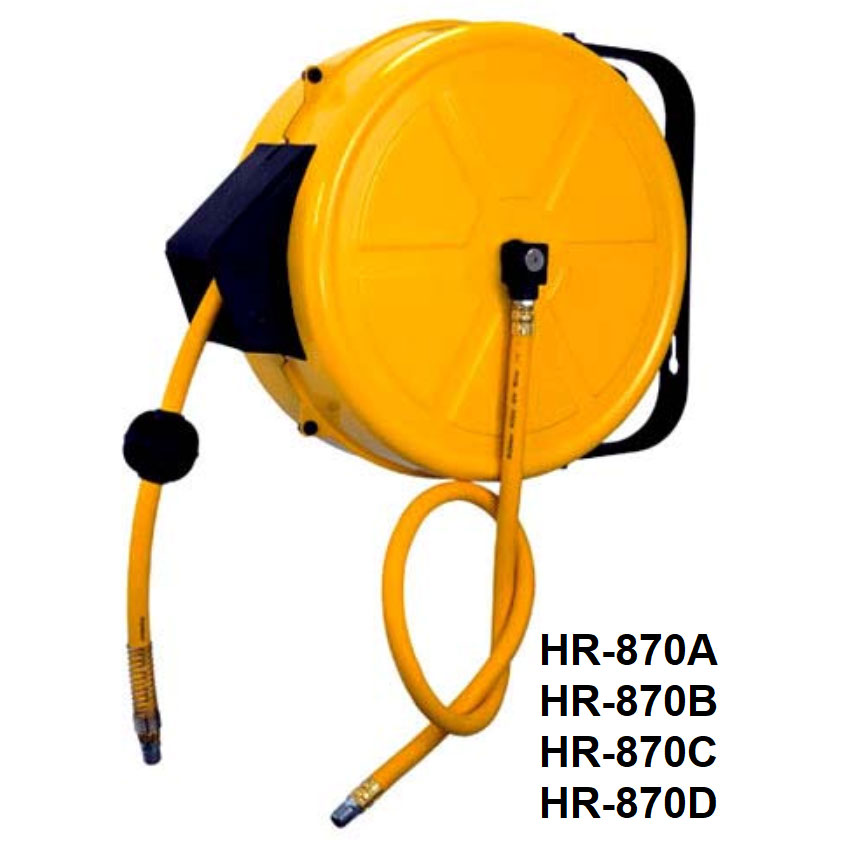

| HR-870A | 3/8″ | – | 15M (50ft) |
1/4″
|
300 psi
|
Steel
|
355x200x405
|
8kg
|
| HR-870B | 5/16″ | – | 20M (66ft) | |||||
| HR-870C | 1/4″ | – | 20M (66ft) | |||||
| HR-870D | 5/8″ | – | 20M (66ft) |
